TECHNICAL DATA / WITH POP-UP WASTE
TECHNICAL DATA / WITHOUT POP-UP WASTE
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Accessories incl.
Surface finish
3.4133.1.090.101.1
3/8“ flexible connection hoses
110 mm
5.7 l/min (3 bar)
I/-
bidet single-lever mixer
25 mm cartridge
fixed spout
pop-up waste 11⁄4“
PVD inox look
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Surface finish
3.4133.1.090.103.1
3/8“ flexible connection hoses
110 mm
5.7 l/min (3 bar)
I/-
bidet single-lever mixer
25 mm cartridge
fixed spout“
PVD inox look
TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
40
Ø46
M16.5x1
24°
40
Ø46
M16.5x1
24°
78°
110
110
ECHELLE 5:84
20180214
G3/8
G3/8
78°
Ø63
G1 1/4

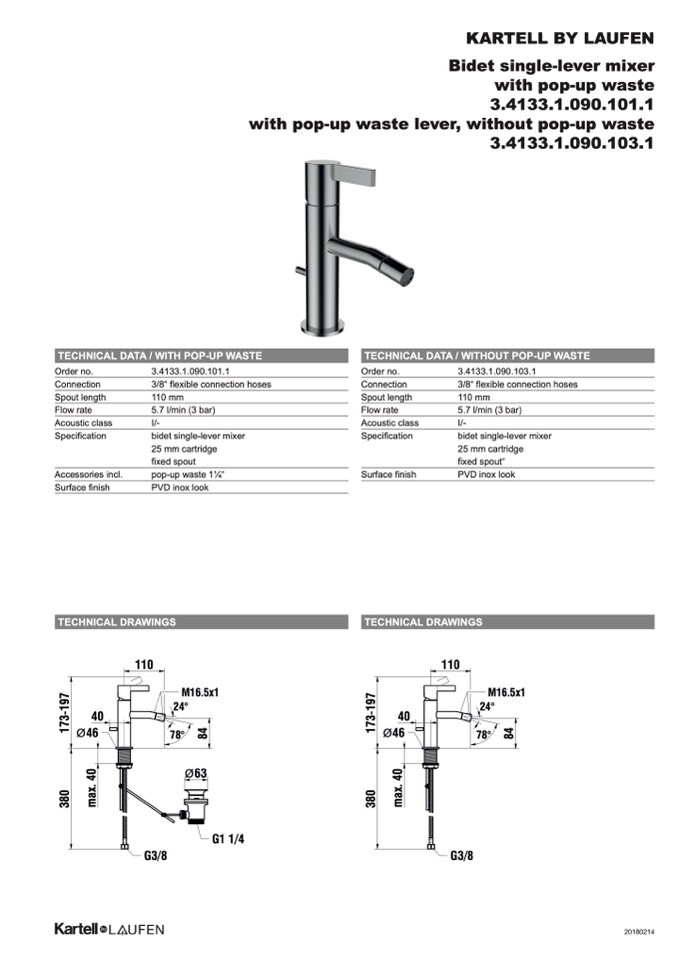

KARTELL BY LAUFEN
Bidet single-lever mixer
with pop-up waste
3.4133.1.090.101.1
with pop-up waste lever, without pop-up waste
3.4133.1.090.103.1
