TECHNICAL DATA

Order no.

Spout length

Flow rate

Acoustic class

Specification

3.2133.1.004.121.1

202 mm

spout: 24.6 l/min (3bar)

shower: 9.1 l/min (3bar)

spout: IIC

shower: IIC

column bath mixer

40 mm Ecototal cartridge with flow and

temperature brake

fixed spout

max height 843 mm (depending on the thickness

of the screed and tile)

Accessories incl.

Mounting acc. excl.

Surface finish

synthetic flexible hose 1250 mm and Twinstick

handshower

technical bloc for column bath mixer, order no.

3.7098.5.000.000.1

chrome

TECHNICAL DRAWINGS

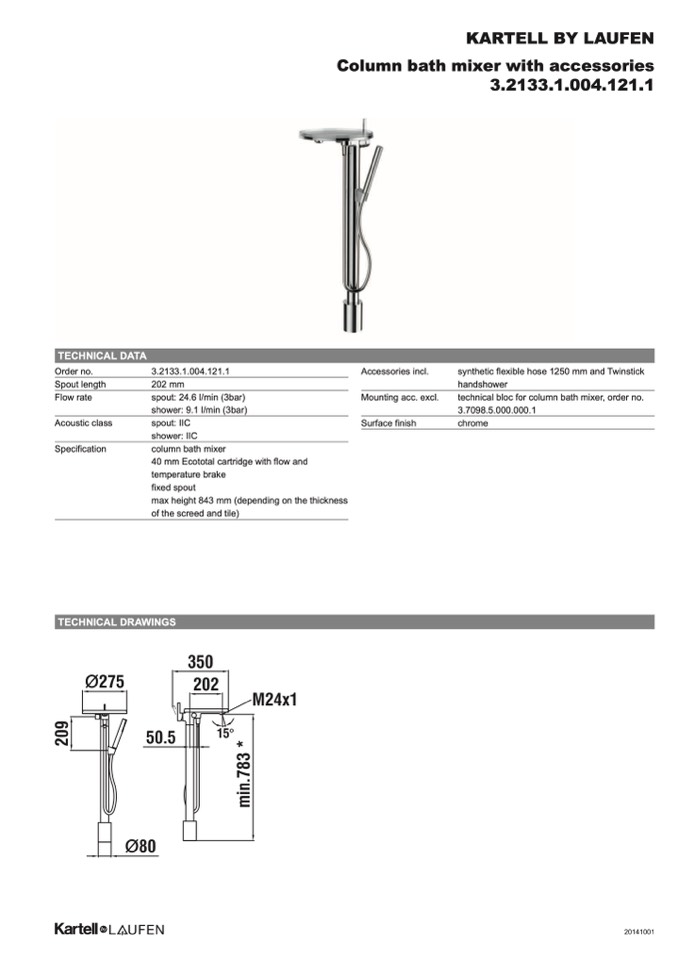

KARTELL BY LAUFEN

Column bath mixer with accessories

3.2133.1.004.121.1

20141001
