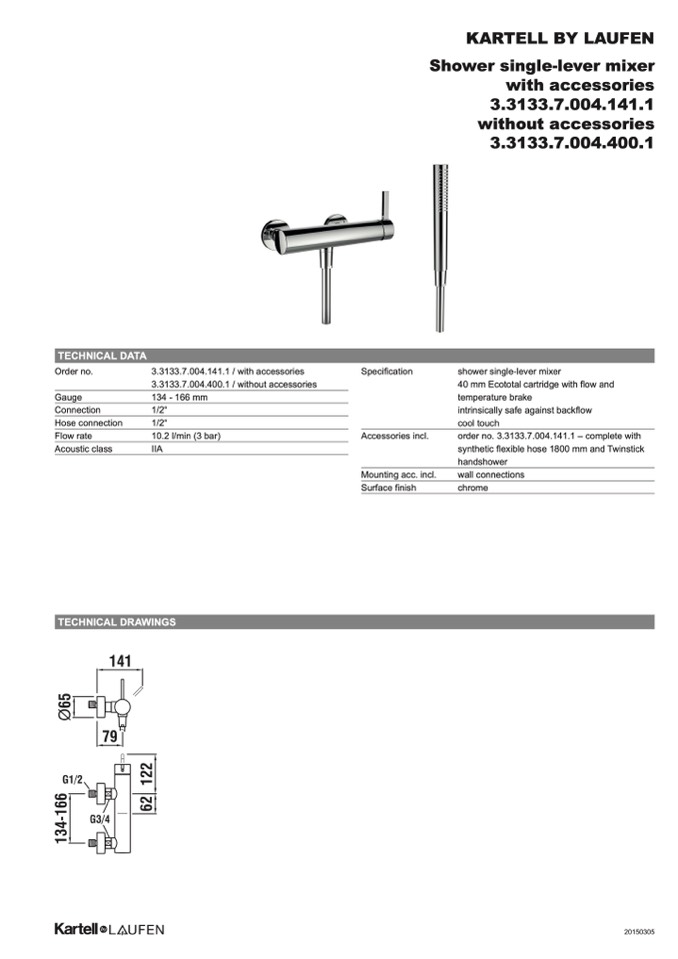

KARTELL BY LAUFEN

Shower single-lever mixer

with accessories

3.3133.7.004.141.1

without accessories

3.3133.7.004.400.1

TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Flow rate

Acoustic class

3.3133.7.004.141.1 / with accessories

3.3133.7.004.400.1 / without accessories

134 - 166 mm

1/2“

1/2“

10.2 l/min (3 bar)

IIA

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

shower single-lever mixer

40 mm Ecototal cartridge with flow and

temperature brake

intrinsically safe against backflow

cool touch

order no. 3.3133.7.004.141.1 – complete with

synthetic flexible hose 1800 mm and Twinstick

handshower

wall connections

chrome

TECHNICAL DRAWINGS

20150305
