TECHNICAL DATA

Order no.

Flow rate

Acoustic class

Specification

Accessories incl.

3.3133.9.004.141.1

8.2 l/min (3 bar)

ID

concealed shower mixer for Simibox 1-Point

40 mm Ecototal cartridge with flow and

temperature brake

transparent crystall disc supplied - other colours

are to be ordered separately

order no. 3.3133.9.004.141.1 – complete with

synthetic flexible hose 1800 mm and Twinstick

handshower

Mounting acc. excl.

Surface finish

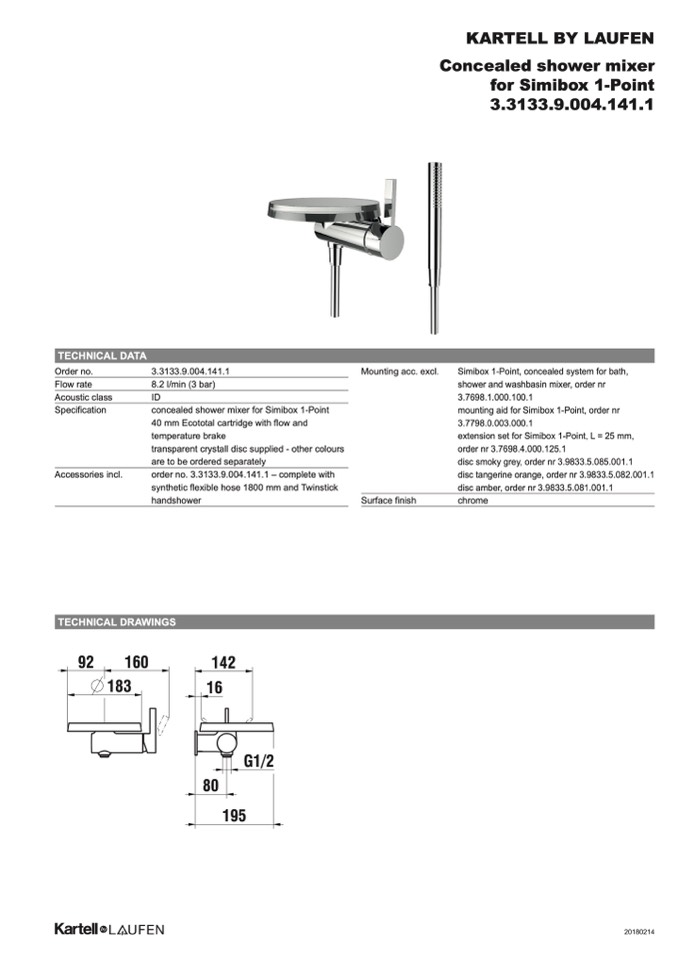

KARTELL BY LAUFEN

Concealed shower mixer

for Simibox 1-Point

3.3133.9.004.141.1

Simibox 1-Point, concealed system for bath,

shower and washbasin mixer, order nr

3.7698.1.000.100.1

mounting aid for Simibox 1-Point, order nr

3.7798.0.003.000.1

extension set for Simibox 1-Point, L = 25 mm,

order nr 3.7698.4.000.125.1

disc smoky grey, order nr 3.9833.5.085.001.1

disc tangerine orange, order nr 3.9833.5.082.001.1

disc amber, order nr 3.9833.5.081.001.1

chrome

TECHNICAL DRAWINGS

92

160

142

G1/2

183

16

80

195

20180214
