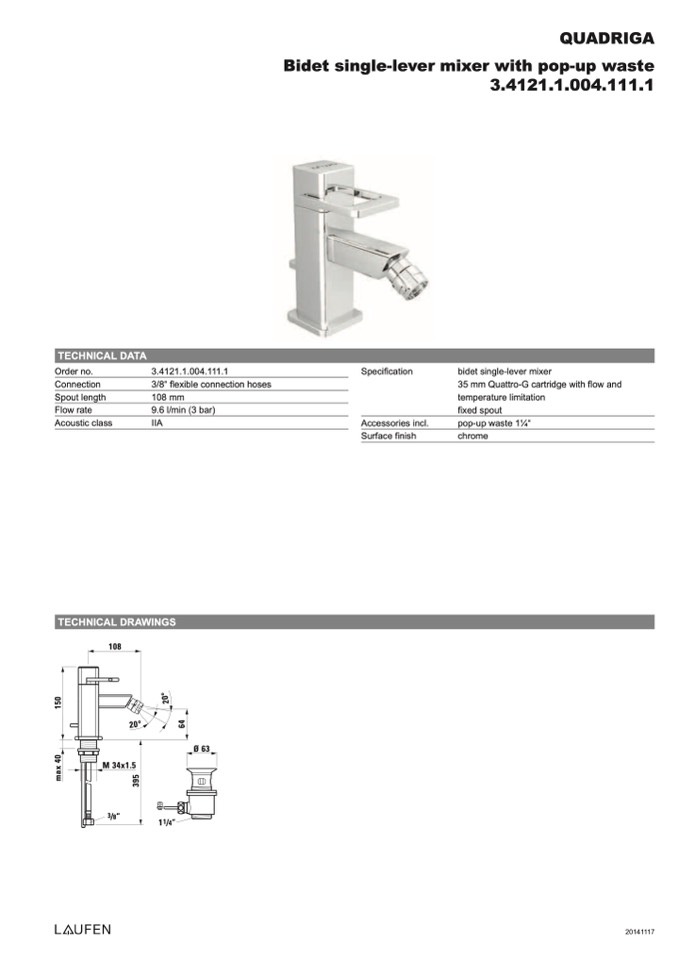

QUADRIGA

Bidet single-lever mixer with pop-up waste

3.4121.1.004.111.1

TECHNICAL DATA

Order no.

Connection

Spout length

Flow rate

Acoustic class

3.4121.1.004.111.1

3/8“ flexible connection hoses

108 mm

9.6 l/min (3 bar)

IIA

Specification

Accessories incl.

Surface finish

bidet single-lever mixer

35 mm Quattro-G cartridge with flow and

temperature limitation

fixed spout

pop-up waste 11⁄4“

chrome

TECHNICAL DRAWINGS

108

Ø 63

M 34x1.5

3/8“

1 1/4“

20141117

2

0

°

20°

m

a

x

4

0

1

5

0

3

9

5

6

4
