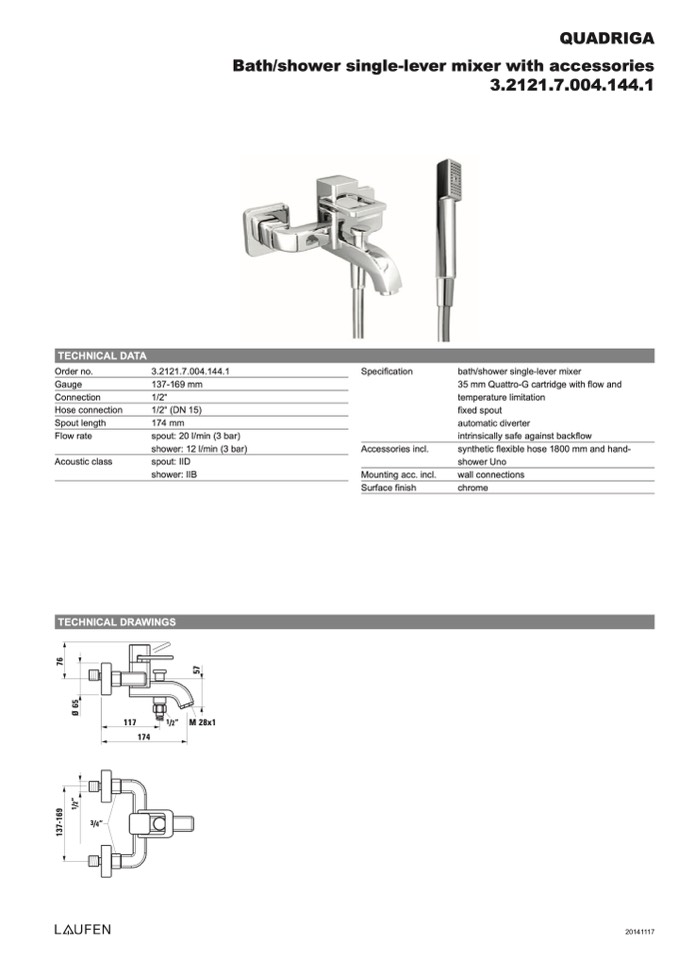

TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Spout length

Flow rate

Acoustic class

3.2121.7.004.144.1

137-169 mm

1/2“

1/2“ (DN 15)

174 mm

spout: 20 l/min (3 bar)

shower: 12 l/min (3 bar)

spout: IID

shower: IIB

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

bath/shower single-lever mixer

35 mm Quattro-G cartridge with flow and

temperature limitation

fixed spout

automatic diverter

intrinsically safe against backflow

synthetic flexible hose 1800 mm and hand-

shower Uno

wall connections

chrome

TECHNICAL DRAWINGS

3/4“

117

1/2“

M 28x1

174

QUADRIGA

Bath/shower single-lever mixer with accessories

3.2121.7.004.144.1

1

3

7

-

1

6

9

1

/

2

“

7

6

Ø

6

5

5

7

20141117
