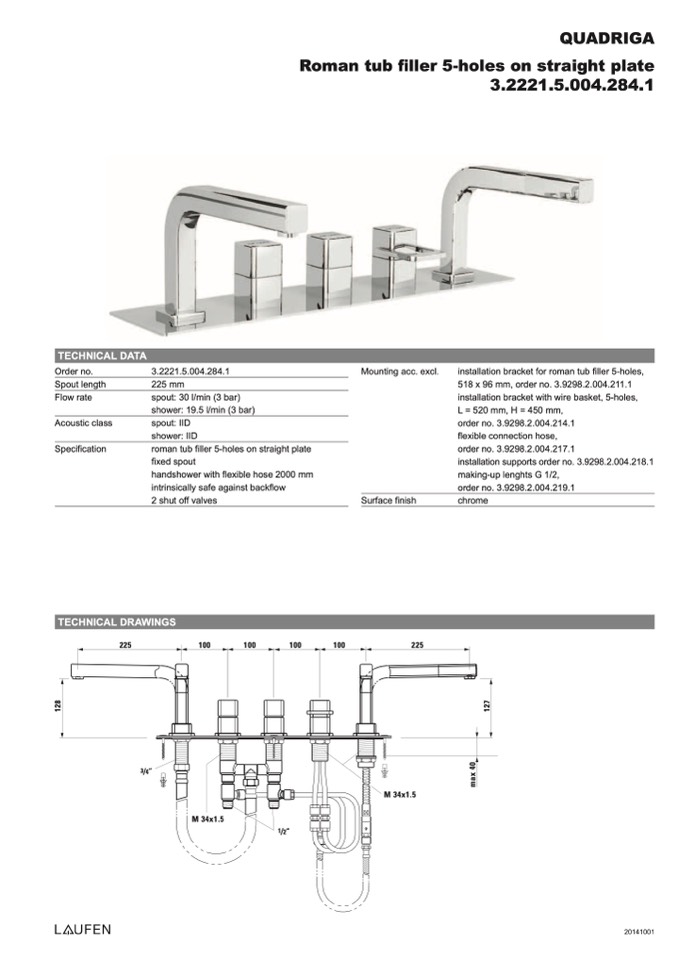

TECHNICAL DATA

Order no.

Spout length

Flow rate

Acoustic class

Specification

3.2221.5.004.284.1

225 mm

spout: 30 l/min (3 bar)

shower: 19.5 l/min (3 bar)

spout: IID

shower: IID

roman tub filler 5-holes on straight plate

fixed spout

handshower with flexible hose 2000 mm

intrinsically safe against backflow

2 shut off valves

Mounting acc. excl.

Surface finish

100

225

installation bracket for roman tub filler 5-holes,

518 x 96 mm, order no. 3.9298.2.004.211.1

installation bracket with wire basket, 5-holes,

L = 520 mm, H = 450 mm,

order no. 3.9298.2.004.214.1

flexible connection hose,

order no. 3.9298.2.004.217.1

installation supports order no. 3.9298.2.004.218.1

making-up lenghts G 1/2,

order no. 3.9298.2.004.219.1

chrome

TECHNICAL DRAWINGS

225

100

100

100

3/4“

M 34x1.5

1/2“

QUADRIGA

����� ��� ����� ������� �� �������� �����

������������������

m

a

x

4

0

1

2

8

1

2

7

M 34x1.5

20141001
