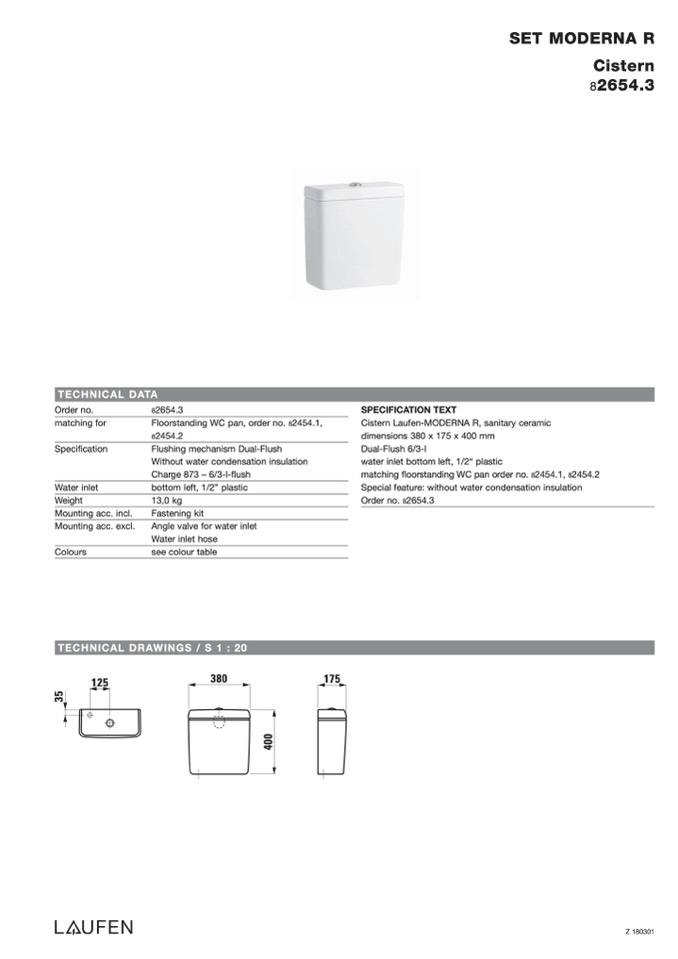

SET MODERNA R

Cistern

82654.3

TECHNICAL DATA

Order no.

matching for

Specification

Water inlet

Weight

Mounting acc. incl.

Mounting acc. excl.

Colours

8

2654.3

Floorstanding WC pan, order no. 82454.1,

8

2454.2

Flushing mechanism Dual-Flush

Without water condensation insulation

Charge 873 – 6/3-l-flush

bottom left, 1/2” plastic

13,0 kg

Fastening kit

Angle valve for water inlet

Water inlet hose

see colour table

SPECIFICATION TEXT

Cistern Laufen-MODERNA R, sanitary ceramic

dimensions 380 x 175 x 400 mm

Dual-Flush 6/3-l

water inlet bottom left, 1/2“ plastic

matching floorstanding WC pan order no. 82454.1, 82454.2

Special feature: without water condensation insulation

Order no. 82654.3

TECHNICAL DRAWINGS / S 1 : 20

125

380

175

Z 180301

4

0

0

3

5
