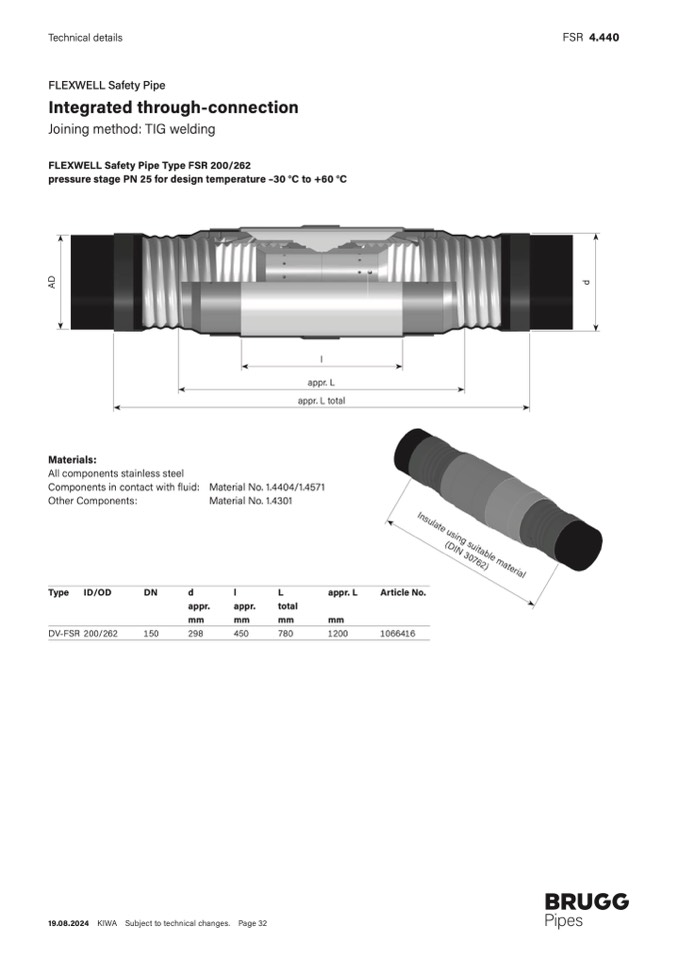

Technical details

FSR 4.440

FLEXWELL Safety Pipe

Integrated through-connection

Joining method: TIG welding

FLEXWELL Safety Pipe Type FSR 200/262

pressure stage PN 25 for design temperature –30 °C to +60 °C

Materials:

All components stainless steel

Components in contact with fluid:

Other Components:

l

appr. L

appr. L total

Material No. 1.4404/1.4571

Material No. 1.4301

Type ID/OD

DV-FSR 200/262

DN

d

appr.

appr.

total

Article No.

1066416

19.08.2024 KIWA

Subject to technical changes. Page 32

150

298

450

780

1200

l

L

mm

mm

mm

mm

appr. L

A

D

d

Insulate using suitable material

(DIN 30762)
