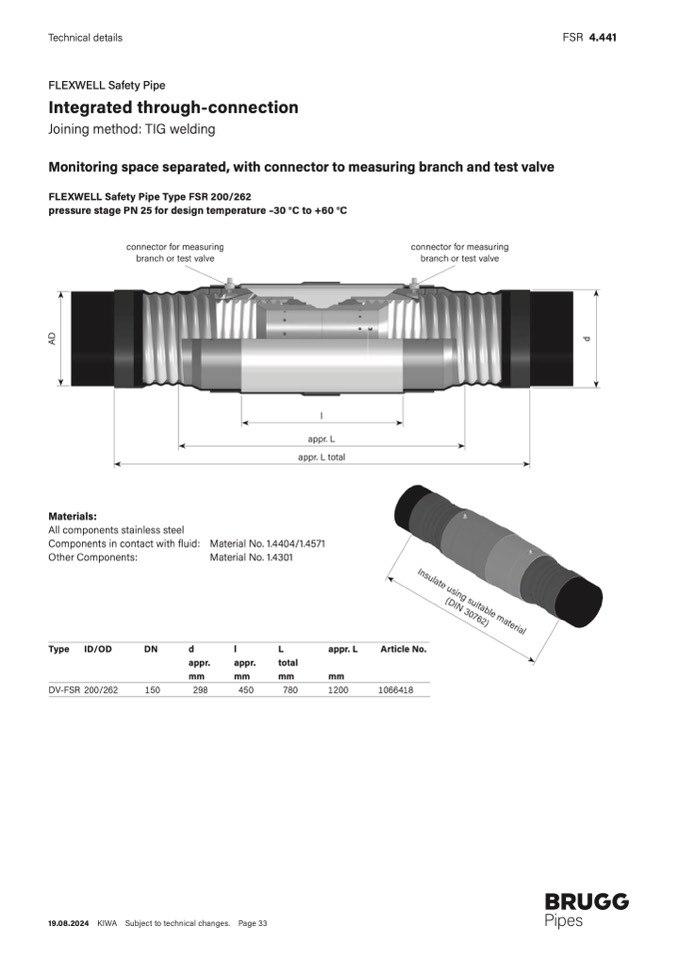

Technical details

FSR 4.441

FLEXWELL Safety Pipe

Integrated through-connection

Joining method: TIG welding

Monitoring space separated, with connector to measuring branch and test valve

FLEXWELL Safety Pipe Type FSR 200/262

pressure stage PN 25 for design temperature –30 °C to +60 °C

Materials:

All components stainless steel

Components in contact with fluid:

Other Components:

l

appr. L

appr. L total

Material No. 1.4404/1.4571

Material No. 1.4301

Type ID/OD

DV-FSR 200/262

DN

d

appr.

appr.

total

Article No.

1066418

19.08.2024 KIWA

Subject to technical changes. Page 33

connector for measuring

branch or test valve

connector for measuring

branch or test valve

150

298

450

780

1200

l

L

mm

mm

mm

mm

appr. L

A

D

d

Insulate using suitable material

(DIN 30762)
