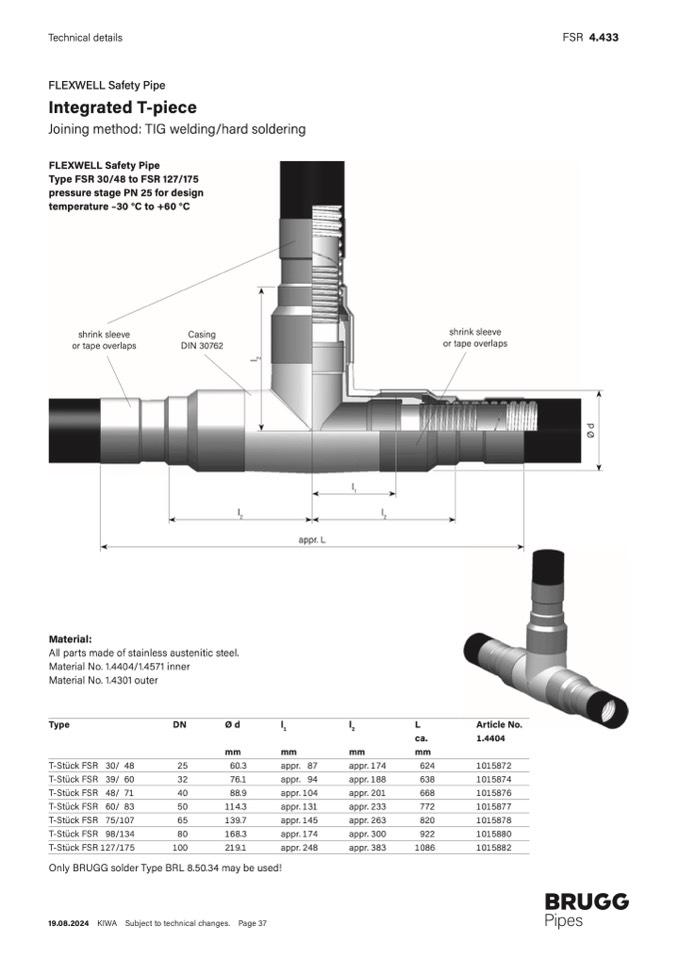

Technical details

FSR 4.433

FLEXWELL Safety Pipe

Integrated T-piece

Joining method: TIG welding/hard soldering

FLEXWELL Safety Pipe

Type FSR 30/48 to FSR 127/175

pressure stage PN 25 for design

temperature –30 °C to +60 °C

Material:

shrink sleeve

or tape overlaps

Casing

DIN 30762

shrink sleeve

or tape overlaps

All parts made of stainless austenitic steel.

Material No. 1.4404/1.4571 inner

Material No. 1.4301 outer

Type

DN

Ød

mm

mm

L

Article No.

ca.

1.4404

T-Stück FSR 30/ 48

25

60.3

T-Stück FSR 39/ 60

32

76.1

T-Stück FSR 48/ 71

40

88.9

T-Stück FSR 60/ 83

50

114.3

T-Stück FSR 75/107

65

139.7

T-Stück FSR 98/134

80

168.3

T-Stück FSR 127/175

100

219.1

appr. 87

appr. 94

appr. 104

appr. 131

appr. 145

appr. 174

appr. 248

appr. 174

624

appr. 188

638

appr. 201

668

appr. 233

772

appr. 263

820

appr. 300

922

appr. 383

1086

1015872

1015874

1015876

1015877

1015878

1015880

1015882

Only BRUGG solder Type BRL 8.50.34 may be used!

19.08.2024 KIWA Subject to technical changes. Page 37

l

2

l

2

l

1

l

2

mm

mm

appr. L

l

1

Ø

d

l

2
