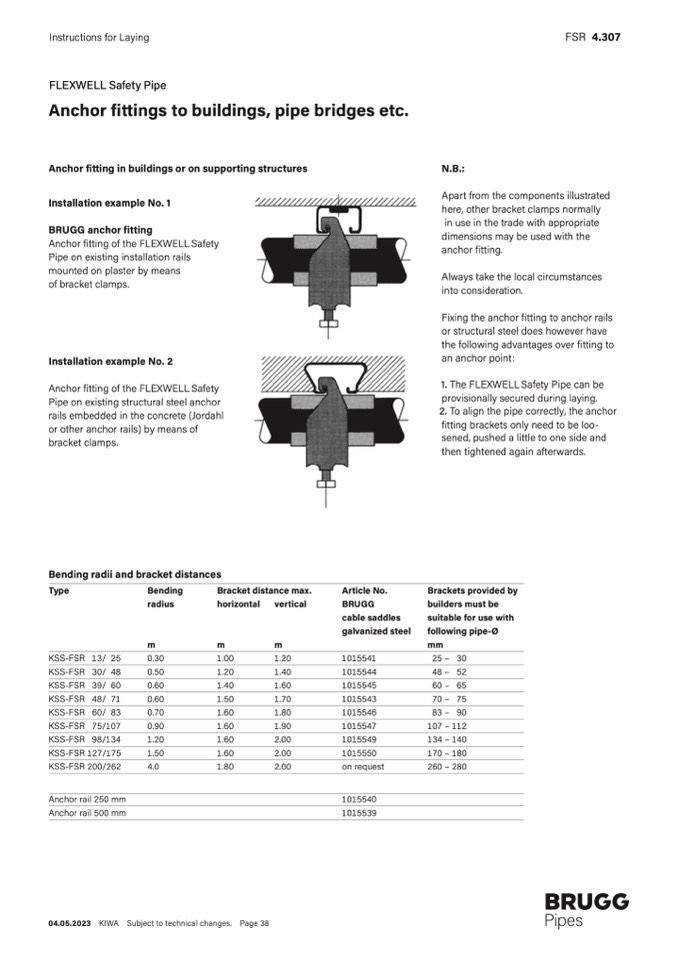

Instructions for Laying

FSR 4.307

FSR 4.307

Project planning

FLEXWELL Safety Pipe

FLEXWELL Safety Pipe

Anchor fittings to buildings, pipe bridges etc.

Anchor fitting in buildings or on supporting structures

Installation example No. 1

BRUGG anchor fitting

Anchor fitting of the FLEXWELL Safety

Pipe on existing installation rails

mounted on plaster by means

of bracket clamps.

Installation example No. 2

Anchor fitting of the FLEXWELL Safety

Pipe on existing structural steel anchor

rails embedded in the concrete (Jordahl

or other anchor rails) by means of

bracket clamps.

Bending radii and bracket distances

N.B.:

Type

Bending

Bracket distance max.

radius

horizontal vertical

m

m

m

Article No.

BRUGG

cable saddles

galvanized steel

1015541

1015544

1015545

1015543

1015546

1015547

1015549

1015550

on request

1015540

1015539

Apart from the components illustrated

here, other bracket clamps normally

in use in the trade with appropriate

dimensions may be used with the

anchor fitting.

Always take the local circumstances

into consideration.

Fixing the anchor fitting to anchor rails

or structural steel does however have

the following advantages over fitting to

an anchor point:

1. The FLEXWELL Safety Pipe can be

provisionally secured during laying.

2. To align the pipe correctly, the anchor

fitting brackets only need to be loo-

sened, pushed a little to one side and

then tightened again afterwards.

Brackets provided by

builders must be

suitable for use with

following pipe-Ø

mm

25–30

48–52

60–65

70–75

83–90

107 – 112

134 – 140

170 – 180

260 – 280

KSS-FSR 13/ 25

0.30

KSS-FSR 30/ 48

0.50

KSS-FSR 39/ 60

0.60

KSS-FSR 48/ 71

0.60

KSS-FSR 60/ 83

0.70

KSS-FSR 75/107

0.90

KSS-FSR 98/134

1.20

KSS-FSR 127/175

1.50

KSS-FSR 200/262

4.0

Anchor rail 250 mm

Anchor rail 500 mm

1.00

1.20

1.20

1.40

1.40

1.60

1.50

1.70

1.60

1.80

1.60

1.90

1.60

2.00

1.60

2.00

1.80

2.00

04.05.2023 KIWA

Subject to technical changes.

Page 38
