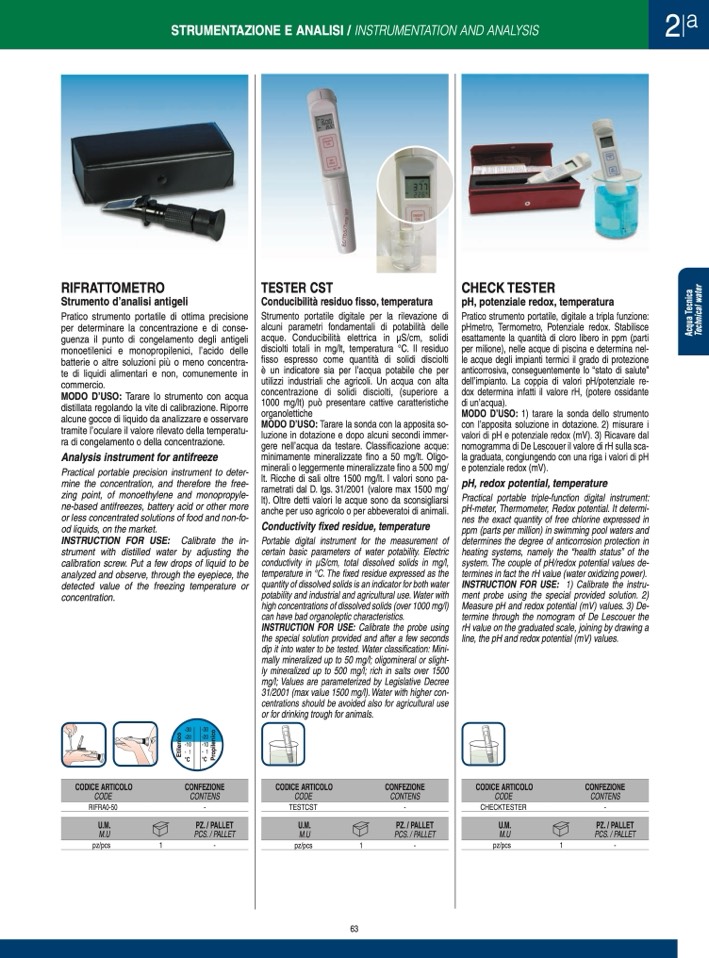

STRUMENTAZIONE E ANALISI / INSTRUMENTATION AND ANALYSIS

2a

RIFRATTOMETRO

Strumento d’analisi antigeli

Pratico strumento portatile di ottima precisione

per determinare la concentrazione e di conse-

guenza il punto di congelamento degli antigeli

monoetilenici e monopropilenici, l’acido delle

batterie o altre soluzioni più o meno concentra-

te di liquidi alimentari e non, comunemente in

commercio.

MODO D’USO: Tarare lo strumento con acqua

distillata regolando la vite di calibrazione. Riporre

alcune gocce di liquido da analizzare e osservare

tramite l’oculare il valore rilevato della temperatu-

ra di congelamento o della concentrazione.

Analysis instrument for antifreeze

Practical portable precision instrument to deter-

mine the concentration, and therefore the free-

zing point, of monoethylene and monopropyle-

ne-based antifreezes, battery acid or other more

or less concentrated solutions of food and non-fo-

od liquids, on the market.

INSTRUCTION FOR USE: Calibrate the in-

strument with distilled water by adjusting the

calibration screw. Put a few drops of liquid to be

analyzed and observe, through the eyepiece, the

detected value of the freezing temperature or

concentration.

TESTER CST

Conducibilità residuo fisso, temperatura

Strumento portatile digitale per la rilevazione di

alcuni parametri fondamentali di potabilità delle

acque. Conducibilità elettrica in μS/cm, solidi

disciolti totali in mg/lt, temperatura °C. Il residuo

fisso espresso come quantità di solidi disciolti

è un indicatore sia per l’acqua potabile che per

utilizzi industriali che agricoli. Un acqua con alta

concentrazione di solidi disciolti, (superiore a

1000 mg/lt) può presentare cattive caratteristiche

organolettiche

MODO D’USO: Tarare la sonda con la apposita so-

luzione in dotazione e dopo alcuni secondi immer-

gere nell’acqua da testare. Classificazione acque:

minimamente mineralizzate fino a 50 mg/lt. Oligo-

minerali o leggermente mineralizzate fino a 500 mg/

lt. Ricche di sali oltre 1500 mg/lt. I valori sono pa-

rametrati dal D. lgs. 31/2001 (valore max 1500 mg/

lt). Oltre detti valori le acque sono da sconsigliarsi

anche per uso agricolo o per abbeveratoi di animali.

Conductivity fixed residue, temperature

Portable digital instrument for the measurement of

certain basic parameters of water potability. Electric

conductivity in μS/cm, total dissolved solids in mg/l,

temperature in °C. The fixed residue expressed as the

quantity of dissolved solids is an indicator for both water

potability and industrial and agricultural use. Water with

high concentrations of dissolved solids (over 1000 mg/l)

can have bad organoleptic characteristics.

INSTRUCTION FOR USE: Calibrate the probe using

the special solution provided and after a few seconds

dip it into water to be tested. Water classification: Mini-

mally mineralized up to 50 mg/l; oligomineral or slight-

ly mineralized up to 500 mg/l; rich in salts over 1500

mg/l; Values are parameterized by Legislative Decree

31/2001 (max value 1500 mg/l). Water with higher con-

centrations should be avoided also for agricultural use

or for drinking trough for animals.

CHECK TESTER

pH, potenziale redox, temperatura

Pratico strumento portatile, digitale a tripla funzione:

pHmetro, Termometro, Potenziale redox. Stabilisce

esattamente la quantità di cloro libero in ppm (parti

per milione), nelle acque di piscina e determina nel-

le acque degli impianti termici il grado di protezione

anticorrosiva, conseguentemente lo “stato di salute”

dell’impianto. La coppia di valori pH/potenziale re-

dox determina infatti il valore rH, (potere ossidante

di un’acqua).

MODO D’USO: 1) tarare la sonda dello strumento

con l’apposita soluzione in dotazione. 2) misurare i

valori di pH e potenziale redox (mV). 3) Ricavare dal

nomogramma di De Lescouer il valore di rH sulla sca-

la graduata, congiungendo con una riga i valori di pH

e potenziale redox (mV).

pH, redox potential, temperature

Practical portable triple-function digital instrument:

pH-meter, Thermometer, Redox potential. It determi-

nes the exact quantity of free chlorine expressed in

ppm (parts per million) in swimming pool waters and

determines the degree of anticorrosion protection in

heating systems, namely the “health status” of the

system. The couple of pH/redox potential values de-

termines in fact the rH value (water oxidizing power).

INSTRUCTION FOR USE: 1) Calibrate the instru-

ment probe using the special provided solution. 2)

Measure pH and redox potential (mV) values. 3) De-

termine through the nomogram of De Lescouer the

rH value on the graduated scale, joining by drawing a

line, the pH and redox potential (mV) values.
