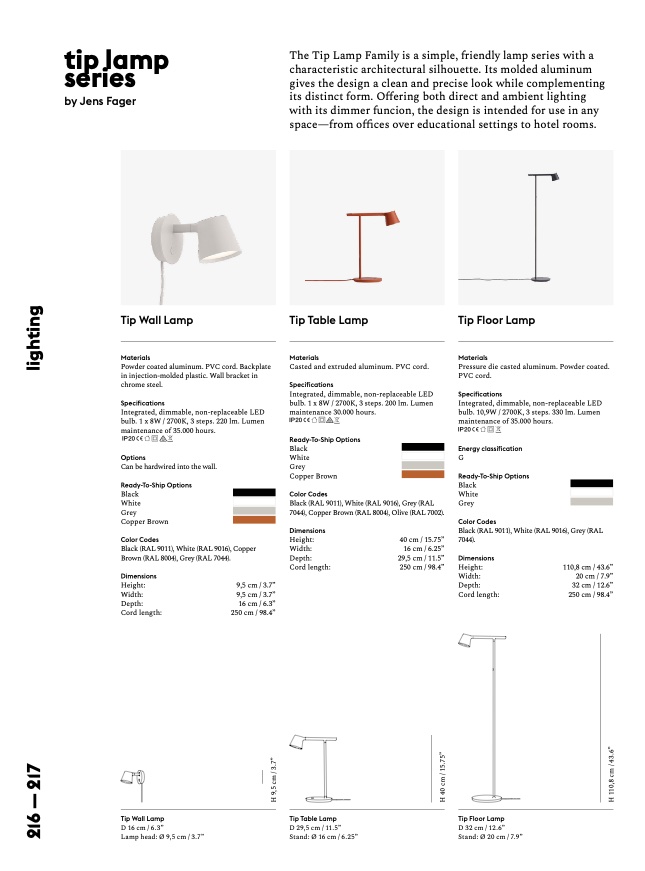

tip lamp
series
by Jens Fager
Tip Wall Lamp
Materials
Powder coated aluminum. PVC cord. Backplate
in injection-molded plastic. Wall bracket in
chrome steel.
Specifications
Integrated, dimmable, non-replaceable LED
bulb. 1 x 8W / 2700K, 3 steps. 220 lm. Lumen
maintenance of 35.000 hours.
Options
Can be hardwired into the wall.
Ready-To-Ship Options
Black
White
Grey
Copper Brown
Color Codes
Black (RAL 9011), White (RAL 9016), Copper
Brown (RAL 8004), Grey (RAL 7044).
The Tip Lamp Family is a simple, friendly lamp series with a
characteristic architectural silhouette. Its molded aluminum
gives the design a clean and precise look while complementing
its distinct form. Offering both direct and ambient lighting
with its dimmer funcion, the design is intended for use in any
space—from offices over educational settings to hotel rooms.
Tip Table Lamp
Materials
Casted and extruded aluminum. PVC cord.
Specifications
Integrated, dimmable, non-replaceable LED
bulb. 1 x 8W / 2700K, 3 steps. 200 lm. Lumen
maintenance 30.000 hours.
Ready-To-Ship Options
Black
White
Grey
Copper Brown
Color Codes
Black (RAL 9011), White (RAL 9016), Grey (RAL
7044), Copper Brown (RAL 8004), Olive (RAL 7002).
Tip Floor Lamp
Materials
Pressure die casted aluminum. Powder coated.
PVC cord.
Specifications
Integrated, dimmable, non-replaceable LED
bulb. 10,9W / 2700K, 3 steps. 330 lm. Lumen
maintenance of 35.000 hours.
Energy classification
G
Ready-To-Ship Options
Black
White
Grey
Color Codes
Black (RAL 9011), White (RAL 9016), Grey (RAL
7044).
Dimensions
Height:
Width:
Depth:
Cord length:
9,5 cm / 3.7”
9,5 cm / 3.7”
16 cm / 6.3”
250 cm / 98.4”
Dimensions
Height:
Width:
Depth:
Cord length:
40 cm / 15.75”
16 cm / 6.25”
29,5 cm / 11.5”
250 cm / 98.4”
Dimensions
Height:
Width:
Depth:
Cord length:
110,8 cm / 43.6”
20 cm / 7.9”
32 cm / 12.6”
250 cm / 98.4”
Tip Wall Lamp
D 16 cm / 6.3”
Lamp head: Ø 9,5 cm / 3.7”
Tip Table Lamp
D 29,5 cm / 11.5”
Stand: Ø 16 cm / 6.25”
Tip Floor Lamp
D 32 cm / 12.6”
Stand: Ø 20 cm / 7.9”
