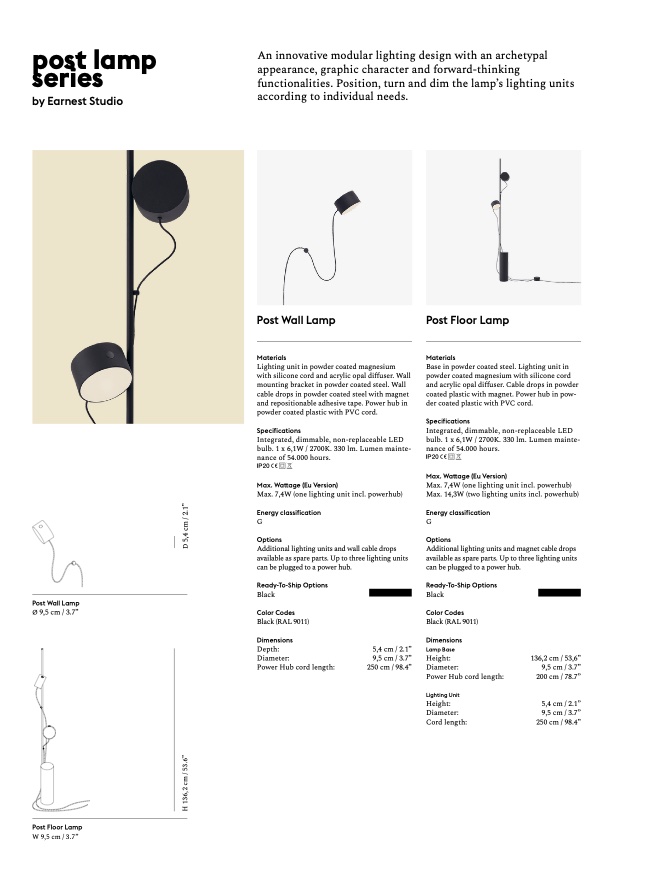

post lamp
series
by Earnest Studio
An innovative modular lighting design with an archetypal
appearance, graphic character and forward-thinking
functionalities. Position, turn and dim the lamp’s lighting units
according to individual needs.
Post Wall Lamp
Materials
Lighting unit in powder coated magnesium
with silicone cord and acrylic opal diffuser. Wall
mounting bracket in powder coated steel. Wall
cable drops in powder coated steel with magnet
and repositionable adhesive tape. Power hub in
powder coated plastic with PVC cord.
Post Floor Lamp
Materials
Base in powder coated steel. Lighting unit in
powder coated magnesium with silicone cord
and acrylic opal diffuser. Cable drops in powder
coated plastic with magnet. Power hub in pow-
der coated plastic with PVC cord.
Specifications
Integrated, dimmable, non-replaceable LED
bulb. 1 x 6,1W / 2700K. 330 lm. Lumen mainte-
nance of 54.000 hours.
Max. Wattage (Eu Version)
Max. 7,4W (one lighting unit incl. powerhub)
Max. 14,3W (two lighting units incl. powerhub)
Energy classification
Specifications
Integrated, dimmable, non-replaceable LED
bulb. 1 x 6,1W / 2700K. 330 lm. Lumen mainte-
nance of 54.000 hours.
Max. Wattage (Eu Version)
Max. 7,4W (one lighting unit incl. powerhub)
Energy classification
G
G
Options
Additional lighting units and wall cable drops
available as spare parts. Up to three lighting units
can be plugged to a power hub.
Options
Additional lighting units and magnet cable drops
available as spare parts. Up to three lighting units
can be plugged to a power hub.
Post Wall Lamp
Ø 9,5 cm / 3.7”
Ready-To-Ship Options
Black
Color Codes
Black (RAL 9011)
Dimensions
Depth:
Diameter:
Power Hub cord length:
Ready-To-Ship Options
Black
Color Codes
Black (RAL 9011)
Dimensions
Lamp Base
Height:
Diameter:
Power Hub cord length:
Lighting Unit
Height:
Diameter:
Cord length:
5,4 cm / 2.1”
9,5 cm / 3.7”
250 cm / 98.4”
136,2 cm / 53,6”
9,5 cm / 3.7”
200 cm / 78.7”
5,4 cm / 2.1”
9,5 cm / 3.7”
250 cm / 98.4”
Post Floor Lamp
W 9,5 cm / 3.7”
H
1
3
6
,
2
c
m
/
5
3
.
6
”
D
5
,
4
c
m
/
2
.
1
”
