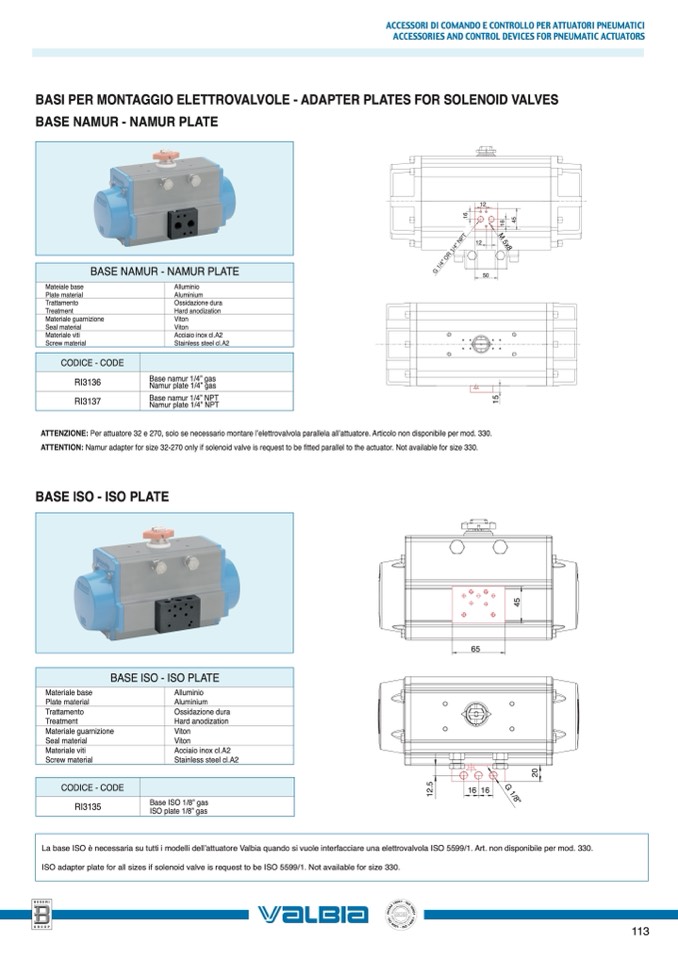

ACCESSORI DI COMANDO E CONTROLLO PER ATTUATORI PNEUMATICI

ACCESSORIES AND CONTROL DEVICES FOR PNEUMATIC ACTUATORS

BASI PER MONTAGGIO ELETTROVALVOLE - ADAPTER PLATES FOR SOLENOID VALVES

BASE NAMUR - NAMUR PLATE

Mateiale base

Plate material

Trattamento

Treatment

Materiale guarnizione

Seal material

Materiale viti

Screw material

CODICE - CODE

RI3136

RI3137

Alluminio

Aluminium

Ossidazione dura

Hard anodization

Viton

Viton

Acciaio inox cl.A2

Stainless steel cl.A2

Base namur 1/4” gas

Namur plate 1/4” gas

Base namur 1/4” NPT

Namur plate 1/4” NPT

BASE NAMUR - NAMUR PLATE

12

12

50

ATTENZIONE: Per attuatore 32 e 270, solo se necessario montare l’elettrovalvola parallela all’attuatore. Articolo non disponibile per mod. 330.

ATTENTION: Namur adapter for size 32-270 only if solenoid valve is request to be fitted parallel to the actuator. Not available for size 330.

BASE ISO - ISO PLATE

Materiale base

Plate material

Trattamento

Treatment

Materiale guarnizione

Seal material

Materiale viti

Screw material

CODICE - CODE

RI3135

Alluminio

Aluminium

Ossidazione dura

Hard anodization

Viton

Viton

Acciaio inox cl.A2

Stainless steel cl.A2

Base ISO 1/8” gas

ISO plate 1/8” gas

BASE ISO - ISO PLATE

65

16 16

G 1/8"

1

2

.

5

2

0

4

5

1

5

1

6

4

5

1

6

La base ISO è necessaria su tutti i modelli dell’attuatore Valbia quando si vuole interfacciare una elettrovalvola ISO 5599/1. Art. non disponibile per mod. 330.

ISO adapter plate for all sizes if solenoid valve is request to be ISO 5599/1. Not available for size 330.

113
