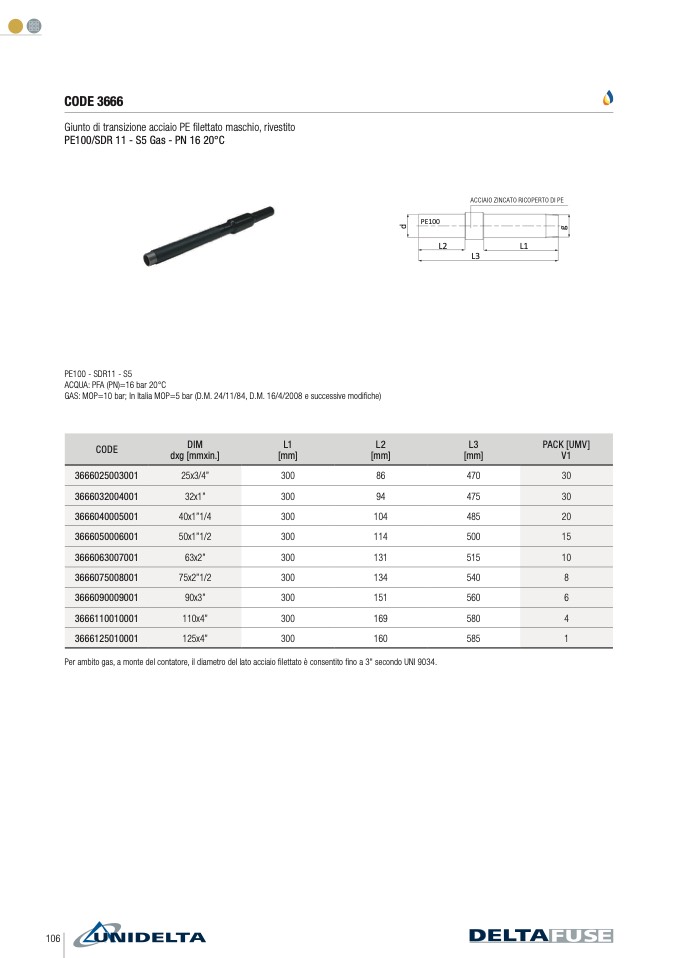

CODE 3666

Giunto di transizione acciaio PE filettato maschio, rivestito

PE100/SDR 11 - S5 Gas - PN 16 20°C

PE100 - SDR11 - S5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modi

fiche)

Per ambito gas, a monte del contatore, il diametro del lato acciaio filettato è consentito fino a 3" secondo UNI 9034.

ACCIAIO ZINCATO RICOPERTO DI PE

P E 10 0

L1

L2

L3

d

g

CODE

DIM

dxg [mmxin.]

L1

[mm]

L2

[mm]

L3

[mm]

PACK [UMV]

V1

3666025003001

25x3/4”

300

86

470

30

3666032004001

32x1”

300

94

475

30

3666040005001

40x1”1/4

300

104

485

20

3666050006001

50x1”1/2

300

114

500

15

3666063007001

63x2”

300

131

515

10

3666075008001

75x2”1/2

300

134

540

8

3666090009001

90x3”

300

151

560

6

3666110010001

110x4”

300

169

580

4

3666125010001

125x4”

300

160

585

1
