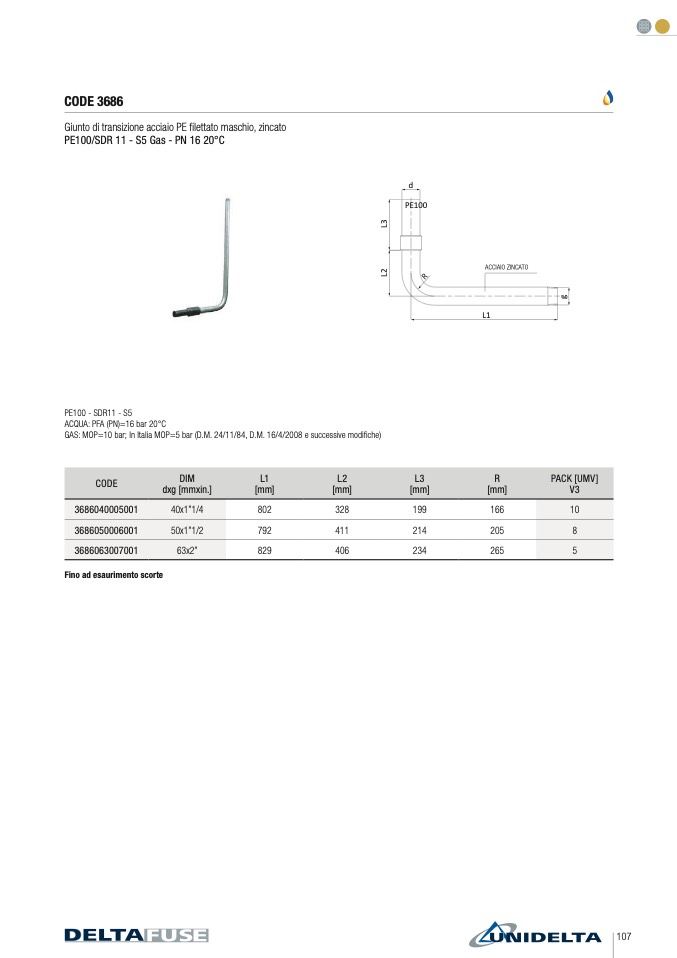

CODE 3686

Giunto di transizione acciaio PE filettato maschio, zincato

PE100/SDR 11 - S5 Gas - PN 16 20°C

PE100 - SDR11 - S5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modi

fiche)

Fino ad esaurimento scorte

d

0

ACCIAIO ZINCATO

107

PE

10

g

L

2

L

3

L1

CODE

DIM

dxg [mmxin.]

L1

[mm]

L2

[mm]

L3

[mm]

R

[mm]

PACK [UMV]

V3

3686040005001

40x1”1/4

802

328

199

166

10

3686050006001

50x1”1/2

792

411

214

205

8

3686063007001

63x2”

829

406

234

265

5
