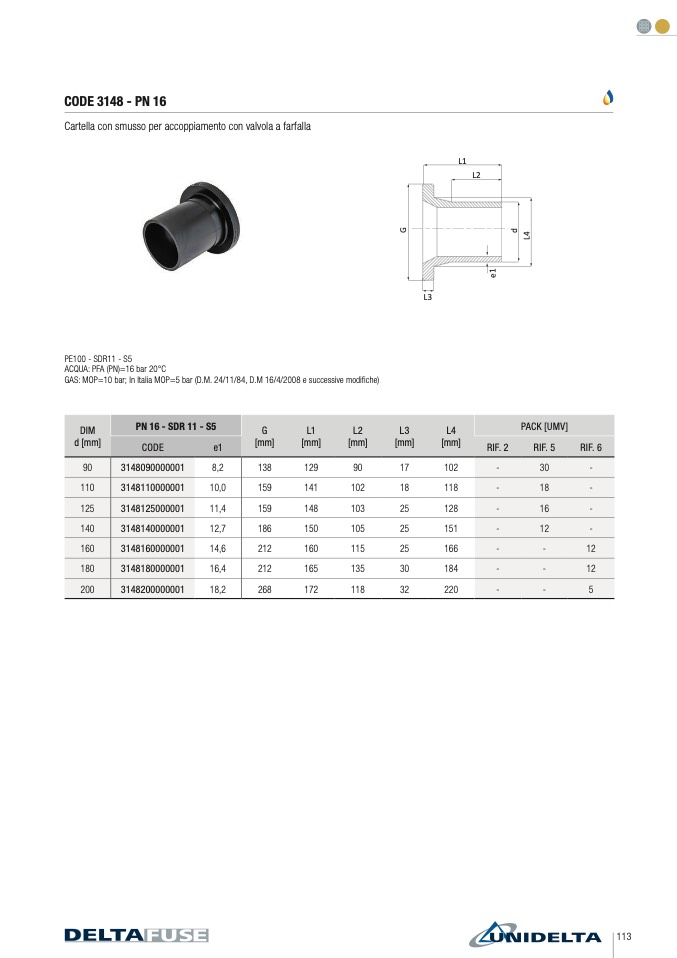

CODE 3148 - PN 16

Cartella con smusso per accoppiamento con valvola a farfalla

PE100 - SDR11 - S5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M 16/4/2008 e successive modifiche)

L3

L1

L2

113

e

1

G

d

L

4

DIM

d [mm]

PN 16 - SDR 11 - S5

G

[mm]

L1

[mm]

L2

[mm]

L3

[mm]

L4

[mm]

PACK [UMV]

CODE

e1

RIF. 2

RIF. 5

RIF. 6

90

3148090000001

8,2

138

129

90

17

102

-

30

-

110

3148110000001

10,0

159

141

102

18

118

-

18

-

125

3148125000001

11,4

159

148

103

25

128

-

16

-

140

3148140000001

12,7

186

150

105

25

151

-

12

-

160

3148160000001

14,6

212

160

115

25

166

-

-

12

180

3148180000001

16,4

212

165

135

30

184

-

-

12

200

3148200000001

18,2

268

172

118

32

220

-

-

5
