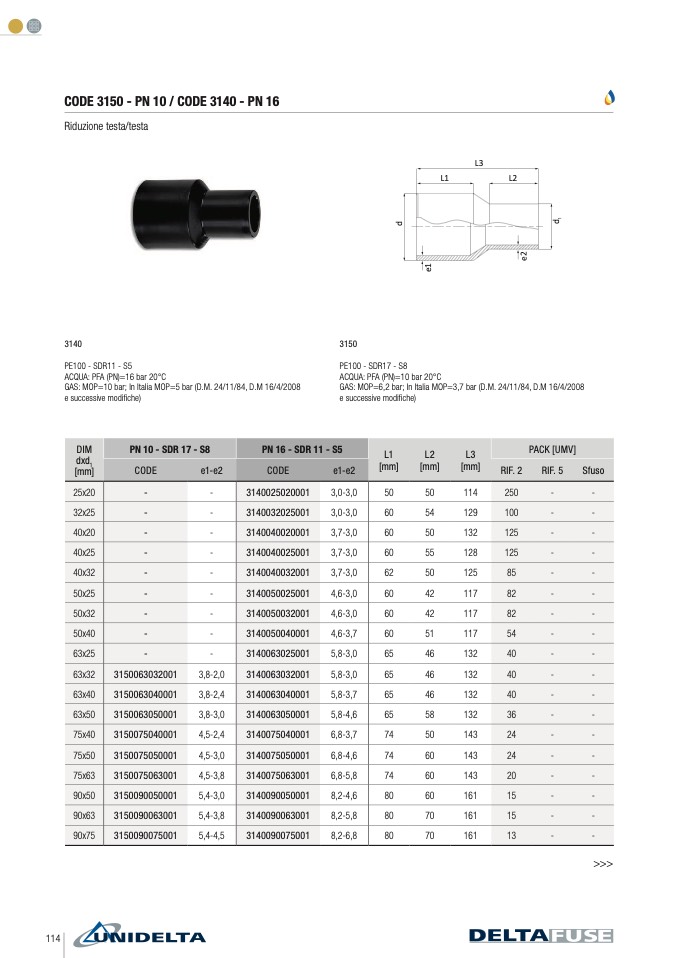

CODE 3150 - PN 10 / CODE 3140 - PN 16
Riduzione testa/testa
3140
PE100 - SDR11 - S5
ACQUA: PFA (PN)=16 bar 20°C
GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M 16/4/2008
e successive modifiche)
3150
L1
L2
PE100 - SDR17 - S8
ACQUA: PFA (PN)=10 bar 20°C
GAS: MOP=6,2 bar; In Italia MOP=3,7 bar (D.M. 24/11/84, D.M 16/4/2008
e successive modifiche)
L3
>>>
e
1
d
e
2
d
1
DIM
dxd
1
[mm]
PN 10 - SDR 17 - S8
PN 16 - SDR 11 - S5
L1
[mm]
L2
[mm]
L3
[mm]
PACK [UMV]
CODE
e1-e2
CODE
e1-e2
RIF. 2
RIF. 5
Sfuso
25x20
-
-
3140025020001
3,0-3,0
50
50
114
250
-
-
32x25
-
-
3140032025001
3,0-3,0
60
54
129
100
-
-
40x20
-
-
3140040020001
3,7-3,0
60
50
132
125
-
-
40x25
-
-
3140040025001
3,7-3,0
60
55
128
125
-
-
40x32
-
-
3140040032001
3,7-3,0
62
50
125
85
-
-
50x25
-
-
3140050025001
4,6-3,0
60
42
117
82
-
-
50x32
-
-
3140050032001
4,6-3,0
60
42
117
82
-
-
50x40
-
-
3140050040001
4,6-3,7
60
51
117
54
-
-
63x25
-
-
3140063025001
5,8-3,0
65
46
132
40
-
-
63x32
3150063032001
3,8-2,0
3140063032001
5,8-3,0
65
46
132
40
-
-
63x40
3150063040001
3,8-2,4
3140063040001
5,8-3,7
65
46
132
40
-
-
63x50
3150063050001
3,8-3,0
3140063050001
5,8-4,6
65
58
132
36
-
-
75x40
3150075040001
4,5-2,4
3140075040001
6,8-3,7
74
50
143
24
-
-
75x50
3150075050001
4,5-3,0
3140075050001
6,8-4,6
74
60
143
24
-
-
75x63
3150075063001
4,5-3,8
3140075063001
6,8-5,8
74
60
143
20
-
-
90x50
3150090050001
5,4-3,0
3140090050001
8,2-4,6
80
60
161
15
-
-
90x63
3150090063001
5,4-3,8
3140090063001
8,2-5,8
80
70
161
15
-
-
90x75
3150090075001
5,4-4,5
3140090075001
8,2-6,8
80
70
161
13
-
-
