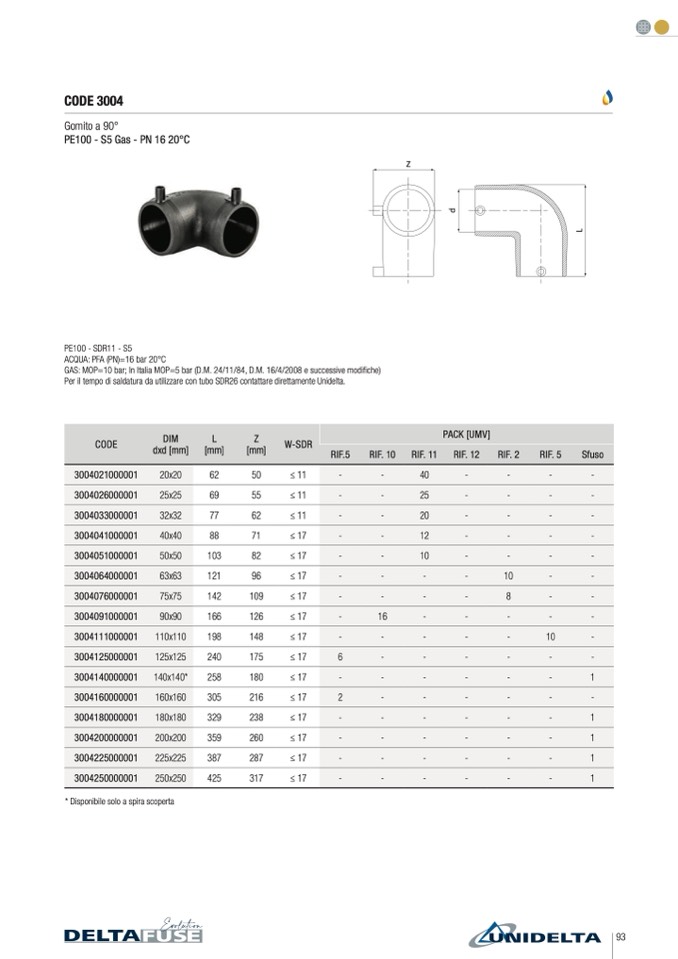

CODE 3004

Gomito a 90°

PE100 - S5 Gas - PN 16 20°C

PE100 - SDR11 - S5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modifiche)

Per il tempo di saldatura da utilizzare con tubo SDR26 contattare direttamente Unidelta.

* Disponibile solo a spira scoperta

Z

93

L

d

CODE

DIM

dxd [mm]

L

[mm]

Z

[mm]

W-SDR

PACK [UMV]

RIF.5

RIF. 10

RIF. 11

RIF. 12

RIF. 2

RIF. 5

Sfuso

3004021000001

20x20

62

50

≤ 11

-

-

40

-

-

-

-

3004026000001

25x25

69

55

≤ 11

-

-

25

-

-

-

-

3004033000001

32x32

77

62

≤ 11

-

-

20

-

-

-

-

3004041000001

40x40

88

71

≤ 17

-

-

12

-

-

-

-

3004051000001

50x50

103

82

≤ 17

-

-

10

-

-

-

-

3004064000001

63x63

121

96

≤ 17

-

-

-

-

10

-

-

3004076000001

75x75

142

109

≤ 17

-

-

-

-

8

-

-

3004091000001

90x90

166

126

≤ 17

-

16

-

-

-

-

-

3004111000001

110x110

198

148

≤ 17

-

-

-

-

-

10

-

3004125000001

125x125

240

175

≤ 17

6

-

-

-

-

-

-

3004140000001

140x140*

258

180

≤ 17

-

-

-

-

-

-

1

3004160000001

160x160

305

216

≤ 17

2

-

-

-

-

-

-

3004180000001

180x180

329

238

≤ 17

-

-

-

-

-

-

1

3004200000001

200x200

359

260

≤ 17

-

-

-

-

-

-

1

3004225000001

225x225

387

287

≤ 17

-

-

-

-

-

-

1

3004250000001

250x250

425

317

≤ 17

-

-

-

-

-

-

1
