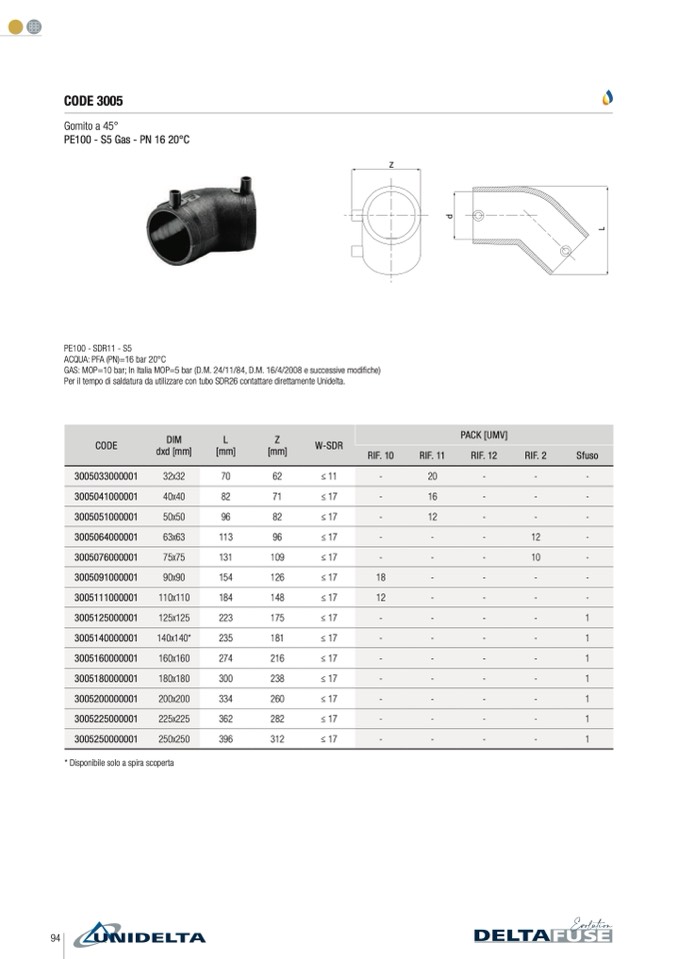

CODE 3005

Gomito a 45°

PE100 - S5 Gas - PN 16 20°C

PE100 - SDR11 - S5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modifiche)

Per il tempo di saldatura da utilizzare con tubo SDR26 contattare direttamente Unidelta.

* Disponibile solo a spira scoperta

Z

L

d

CODE

DIM

dxd [mm]

L

[mm]

Z

[mm]

W-SDR

PACK [UMV]

RIF. 10

RIF. 11

RIF. 12

RIF. 2

Sfuso

3005033000001

32x32

70

62

≤ 11

-

20

-

-

-

3005041000001

40x40

82

71

≤ 17

-

16

-

-

-

3005051000001

50x50

96

82

≤ 17

-

12

-

-

-

3005064000001

63x63

113

96

≤ 17

-

-

-

12

-

3005076000001

75x75

131

109

≤ 17

-

-

-

10

-

3005091000001

90x90

154

126

≤ 17

18

-

-

-

-

3005111000001

110x110

184

148

≤ 17

12

-

-

-

-

3005125000001

125x125

223

175

≤ 17

-

-

-

-

1

3005140000001

140x140*

235

181

≤ 17

-

-

-

-

1

3005160000001

160x160

274

216

≤ 17

-

-

-

-

1

3005180000001

180x180

300

238

≤ 17

-

-

-

-

1

3005200000001

200x200

334

260

≤ 17

-

-

-

-

1

3005225000001

225x225

362

282

≤ 17

-

-

-

-

1

3005250000001

250x250

396

312

≤ 17

-

-

-

-

1
