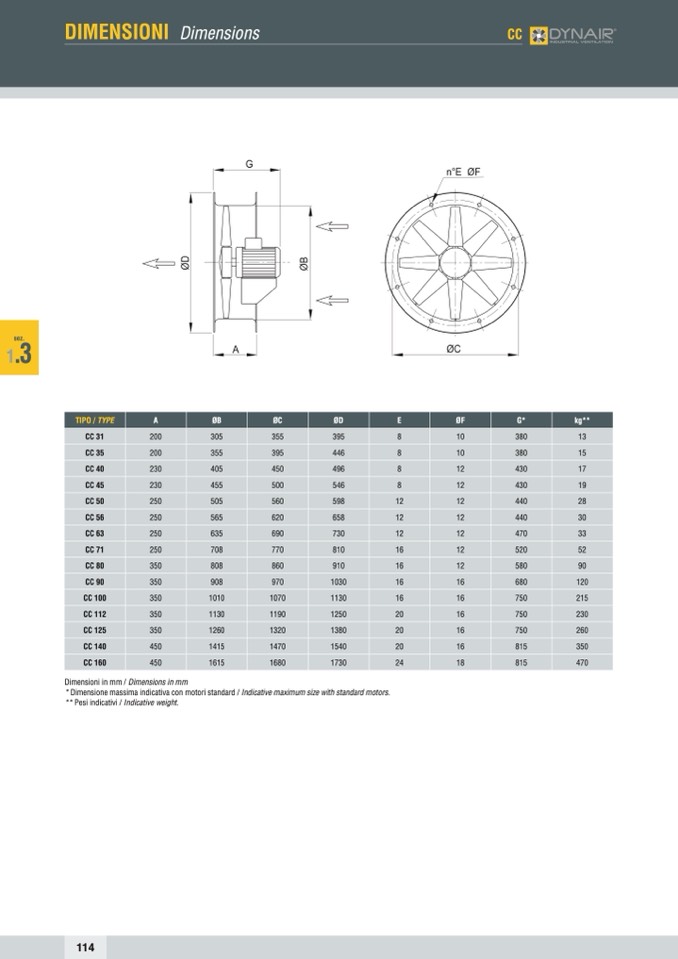

DIMENSIONI Dimensions
CC
sez.
1
.3
TIPO / TYPE A ØB ØC ØD
E ØF
G*
kg**
CC 31 200 305 355 395
8 10
380
13
CC 35 200 355 395 446
8
10
380
15
CC 40 230 405 450 496
8 12
430
17
CC 45 230 455 500 546
8
12
430
19
CC 50 250 505 560 598
12
12
440
28
CC 56 250 565 620 658
12
12
440
30
CC 63 250 635 690 730
12 12
470
33
CC 71 250 708 770 810
16
12
520
52
CC 80 350 808 860 910
16 12
580
90
CC 90 350 908 970 1030
16
16
680
120
CC 100 350 1010 1070 1130
16
16
750
215
CC 112 350 1130 1190 1250
20
16
750
230
CC 125 350 1260 1320 1380
20 16
750
260
CC 140 450 1415 1470 1540
20
16
815
350
CC 160 450 1615 1680 1730
24
18
815
470
Dimensioni in mm / Dimensions in mm
* Dimensione massima indicativa con motori standard / Indicative maximum size with standard motors.
** Pesi indicativi / Indicative weight.
