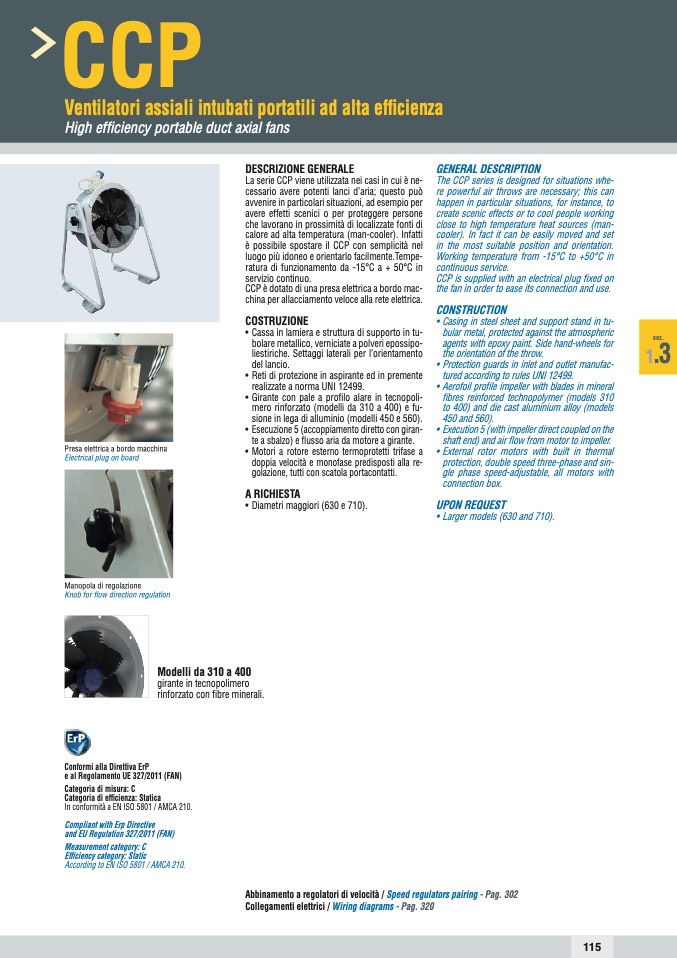

CCP

Ventilatori assiali intubati portatili ad alta efficienza

High efficiency portable duct axial fans

Presa elettrica a bordo macchina

Electrical plug on board

Manopola di regolazione

Knob for flow direction regulation

DESCRIZIONE GENERALE

La serie CCP viene utilizzata nei casi in cui è ne-

cessario avere potenti lanci d’aria; questo può

avvenire in particolari situazioni, ad esempio per

avere effetti scenici o per proteggere persone

che lavorano in prossimità di localizzate fonti di

calore ad alta temperatura (man-cooler). Infatti

è possibile spostare il CCP con semplicità nel

luogo più idoneo e orientarlo facilmente.Tempe-

ratura di funzionamento da -15°C a + 50°C in

servizio continuo.

CCP è dotato di una presa elettrica a bordo mac-

china per allacciamento veloce alla rete elettrica.

COSTRUZIONE

• Cassa in lamiera e struttura di supporto in tu-

bolare metallico, verniciate a polveri epossipo-

liestiriche. Settaggi laterali per l’orientamento

del lancio.

• Reti di protezione in aspirante ed in premente

realizzate a norma UNI 12499.

• Girante con pale a profilo alare in tecnopoli-

mero rinforzato (modelli da 310 a 400) e fu-

sione in lega di alluminio (modelli 450 e 560).

• Esecuzione 5 (accoppiamento diretto con giran-

te a sbalzo) e flusso aria da motore a girante.

• Motori a rotore esterno termoprotetti trifase a

doppia velocità e monofase predisposti alla re-

golazione, tutti con scatola portacontatti.

A RICHIESTA

• Diametri maggiori (630 e 710).

GENERAL DESCRIPTION

The CCP series is designed for situations whe-

re powerful air throws are necessary; this can

happen in particular situations, for instance, to

create scenic effects or to cool people working

close to high temperature heat sources (man-

cooler). In fact it can be easily moved and set

in the most suitable position and orientation.

Working temperature from -15°C to +50°C in

continuous service.

CCP is supplied with an electrical plug fixed on

the fan in order to ease its connection and use.

CONSTRUCTION

• Casing in steel sheet and support stand in tu-

bular metal, protected against the atmospheric

agents with epoxy paint. Side hand-wheels for

the orientation of the throw.

• Protection guards in inlet and outlet manufac-

tured according to rules UNI 12499.

• Aerofoil profile impeller with blades in mineral

fibres reinforced technopolymer (models 310

to 400) and die cast aluminium alloy (models

450 and 560).

• Execution 5 (with impeller direct coupled on the

shaft end) and air flow from motor to impeller.

• External rotor motors with built in thermal

protection, double speed three-phase and sin-

gle phase speed-adjustable, all motors with

connection box.

UPON REQUEST

• Larger models (630 and 710).

Modelli da 310 a 400

girante in tecnopolimero

rinforzato con fibre minerali.

Conformi alla Direttiva ErP

e al Regolamento UE 327/2011 (FAN)

Categoria di misura: C

Categoria di efficienza: Statica

In conformità a EN ISO 5801 / AMCA 210.

Compliant with Erp Directive

and EU Regulation 327/2011 (FAN)

Measurement category: C

Efficiency category: Static

According to EN ISO 5801 / AMCA 210.

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320
