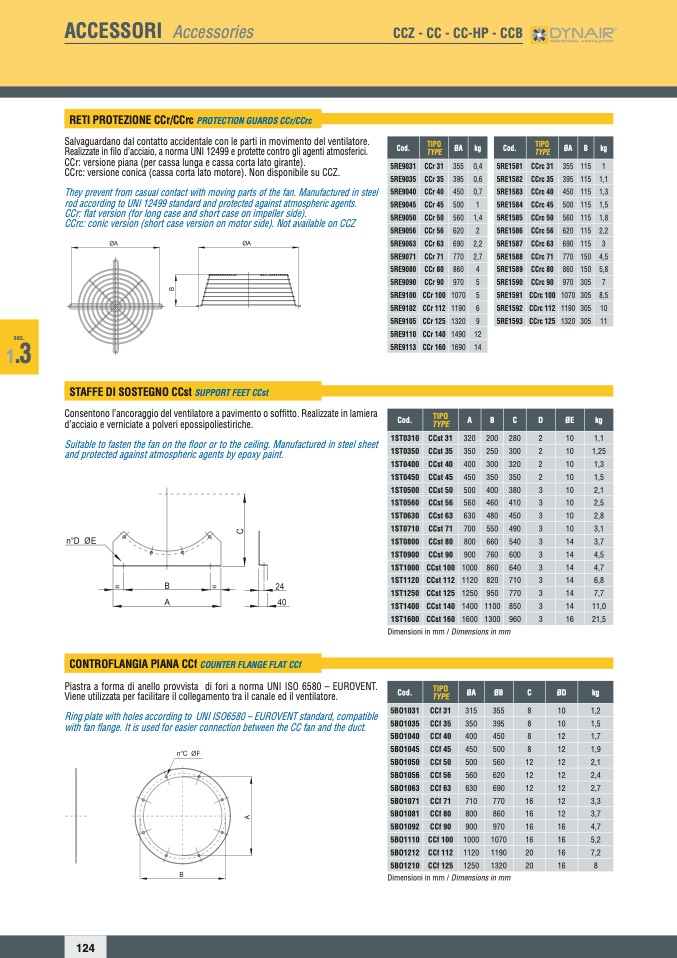

ACCESSORI Accessories
RETI PROTEZIONE CCr/CCrc PROTECTION GUARDS CCr/CCrc
Salvaguardano dal contatto accidentale con le parti in movimento del ventilatore.
Realizzate in filo d’acciaio, a norma UNI 12499 e protette contro gli agenti atmosferici.
CCr: versione piana (per cassa lunga e cassa corta lato girante).
CCrc: versione conica (cassa corta lato motore). Non disponibile su CCZ.
They prevent from casual contact with moving parts of the fan. Manufactured in steel
rod according to UNI 12499 standard and protected against atmospheric agents.
CCr: flat version (for long case and short case on impeller side).
CCrc: conic version (short case version on motor side). Not available on CCZ
sez.
1
.3
CCZ - CC -
Cod.
TIPO
TYPE
5RE9031 CCr 31
5RE9035 CCr 35
5RE9040 CCr 40
5RE9045 CCr 45
5RE9050 CCr 50
5RE9056 CCr 56
5RE9063 CCr 63
5RE9071 CCr 71
5RE9080 CCr 80
5RE9090 CCr 90
5RE9100 CCr 100
5RE9102 CCr 112
5RE9105 CCr 125
5RE9110 CCr 140
5RE9113 CCr 160
Cod.
TIPO
TYPE
CC-HP - CCB
STAFFE DI SOSTEGNO CCst SUPPORT FEET CCst
Consentono l’ancoraggio del ventilatore a pavimento o soffitto. Realizzate in lamiera
d’acciaio e verniciate a polveri epossipoliestiriche.
Suitable to fasten the fan on the floor or to the ceiling. Manufactured in steel sheet
and protected against atmospheric agents by epoxy paint.
1ST0310 CCst 31
1ST0350 CCst 35
1ST0400 CCst 40
1ST0450 CCst 45
1ST0500 CCst 50
1ST0560 CCst 56
1ST0630 CCst 63
1ST0710 CCst 71
1ST0800 CCst 80
1ST0900 CCst 90
1ST1000 CCst 100
1ST1120 CCst 112
1ST1250 CCst 125
1ST1400 CCst 140
1ST1600 CCst 160
320
350
400
450
500
560
630
700
800
900
1000
1120
1250
1400
1600
CONTROFLANGIA PIANA CCf COUNTER FLANGE FLAT CCf
Piastra a forma di anello provvista di fori a norma UNI ISO 6580 – EUROVENT.
Viene utilizzata per facilitare il collegamento tra il canale ed il ventilatore.
Ring plate with holes according to UNI ISO6580 – EUROVENT standard, compatible
with fan flange. It is used for easier connection between the CC fan and the duct.
Cod.
TIPO
TYPE
5BO1031 CCf 31
5BO1035 CCf 35
5BO1040 CCf 40
5BO1045 CCf 45
5BO1050 CCf 50
5BO1056 CCf 56
5BO1063 CCf 63
5BO1071 CCf 71
5BO1081 CCf 80
5BO1092 CCf 90
5BO1110 CCf 100
5BO1212 CCf 112
5BO1210 CCf 125
ØA
ØB
C
315
355
8
350
395
8
400
450
8
450
500
8
500
560
12
560
620
12
630
690
12
710
770
16
800
860
16
900
970
16
1000 1070
16
1120 1190
20
1250 1320
20
1,2
1,5
1,7
1,9
2,1
2,4
2,7
3,3
3,7
4,7
5,2
7,2
8
124
