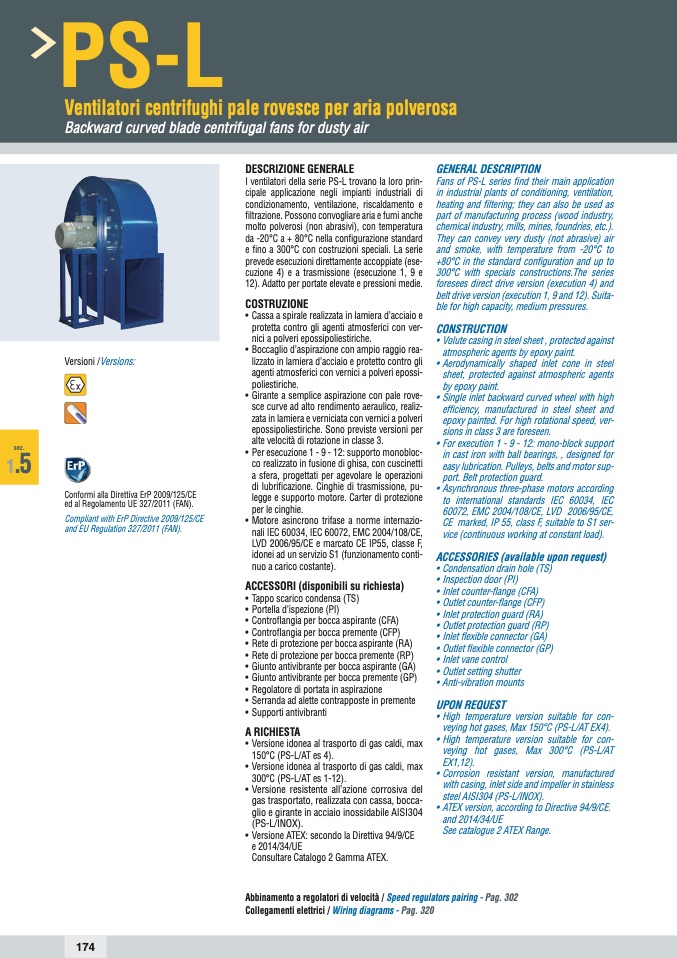

PS-L

Ventilatori centrifughi pale rovesce per aria polverosa

Backward curved blade centrifugal fans for dusty air

Versioni /Versions:

Conformi alla Direttiva ErP 2009/125/CE

ed al Regolamento UE 327/2011 (FAN).

Compliant with ErP Directive 2009/125/CE

and EU Regulation 327/2011 (FAN).

DESCRIZIONE GENERALE

I ventilatori della serie PS-L trovano la loro prin-

cipale applicazione negli impianti industriali di

condizionamento, ventilazione, riscaldamento e

filtrazione. Possono convogliare aria e fumi anche

molto polverosi (non abrasivi), con temperatura

da -20°C a + 80°C nella configurazione standard

e fino a 300°C con costruzioni speciali. La serie

prevede esecuzioni direttamente accoppiate (ese-

cuzione 4) e a trasmissione (esecuzione 1, 9 e

12). Adatto per portate elevate e pressioni medie.

COSTRUZIONE

• Cassa a spirale realizzata in lamiera d’acciaio e

protetta contro gli agenti atmosferici con ver-

nici a polveri epossipoliestiriche.

• Boccaglio d’aspirazione con ampio raggio rea-

lizzato in lamiera d’acciaio e protetto contro gli

agenti atmosferici con vernici a polveri epossi-

poliestiriche.

• Girante a semplice aspirazione con pale rove-

sce curve ad alto rendimento aeraulico, realiz-

zata in lamiera e verniciata con vernici a polveri

epossipoliestiriche. Sono previste versioni per

alte velocità di rotazione in classe 3.

• Per esecuzione 1 - 9 - 12: supporto monobloc-

co realizzato in fusione di ghisa, con cuscinetti

a sfera, progettati per agevolare le operazioni

di lubrificazione. Cinghie di trasmissione, pu-

legge e supporto motore. Carter di protezione

per le cinghie.

• Motore asincrono trifase a norme internazio-

nali IEC 60034, IEC 60072, EMC 2004/108/CE,

LVD 2006/95/CE e marcato CE IP55, classe F,

idonei ad un servizio S1 (funzionamento conti-

nuo a carico costante).

ACCESSORI (disponibili su richiesta)

• Tappo scarico condensa (TS)

• Portella d’ispezione (PI)

• Controflangia per bocca aspirante (CFA)

• Controflangia per bocca premente (CFP)

• Rete di protezione per bocca aspirante (RA)

• Rete di protezione per bocca premente (RP)

• Giunto antivibrante per bocca aspirante (GA)

• Giunto antivibrante per bocca premente (GP)

• Regolatore di portata in aspirazione

• Serranda ad alette contrapposte in premente

• Supporti antivibranti

A RICHIESTA

• Versione idonea al trasporto di gas caldi, max

150°C (PS-L/AT es 4).

• Versione idonea al trasporto di gas caldi, max

300°C (PS-L/AT es 1-12).

• Versione resistente all’azione corrosiva del

gas trasportato, realizzata con cassa, bocca-

glio e girante in acciaio inossidabile AISI304

(PS-L/INOX).

• Versione ATEX: secondo la Direttiva 94/9/CE

e 2014/34/UE

Consultare Catalogo 2 Gamma ATEX.

GENERAL DESCRIPTION

Fans of PS-L series find their main application

in industrial plants of conditioning, ventilation,

heating and filtering; they can also be used as

part of manufacturing process (wood industry,

chemical industry, mills, mines, foundries, etc.).

They can convey very dusty (not abrasive) air

and smoke, with temperature from -20°C to

+80°C in the standard configuration and up to

300°C with specials constructions.The series

foresees direct drive version (execution 4) and

belt drive version (execution 1, 9 and 12). Suita-

ble for high capacity, medium pressures.

CONSTRUCTION

• Volute casing in steel sheet , protected against

atmospheric agents by epoxy paint.

• Aerodynamically shaped inlet cone in steel

sheet, protected against atmospheric agents

by epoxy paint.

• Single inlet backward curved wheel with high

efficiency, manufactured in steel sheet and

epoxy painted. For high rotational speed, ver-

sions in class 3 are foreseen.

• For execution 1 - 9 - 12: mono-block support

in cast iron with ball bearings, , designed for

easy lubrication. Pulleys, belts and motor sup-

port. Belt protection guard.

• Asynchronous three-phase motors according

to international standards IEC 60034, IEC

60072, EMC 2004/108/CE, LVD 2006/95/CE,

CE marked, IP 55, class F, suitable to S1 ser-

vice (continuous working at constant load).

ACCESSORIES (available upon request)

• Condensation drain hole (TS)

• Inspection door (PI)

• Inlet counter-flange (CFA)

• Outlet counter-flange (CFP)

• Inlet protection guard (RA)

• Outlet protection guard (RP)

• Inlet flexible connector (GA)

• Outlet flexible connector (GP)

• Inlet vane control

• Outlet setting shutter

• Anti-vibration mounts

UPON REQUEST

• High temperature version suitable for con-

veying hot gases, Max 150°C (PS-L/AT EX4).

• High temperature version suitable for con-

veying hot gases, Max 300°C (PS-L/AT

EX1,12).

• Corrosion resistant version, manufactured

with casing, inlet side and impeller in stainless

steel AISI304 (PS-L/INOX).

• ATEX version, according to Directive 94/9/CE.

and 2014/34/UE

See catalogue 2 ATEX Range.

sez.

1

.5

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320
