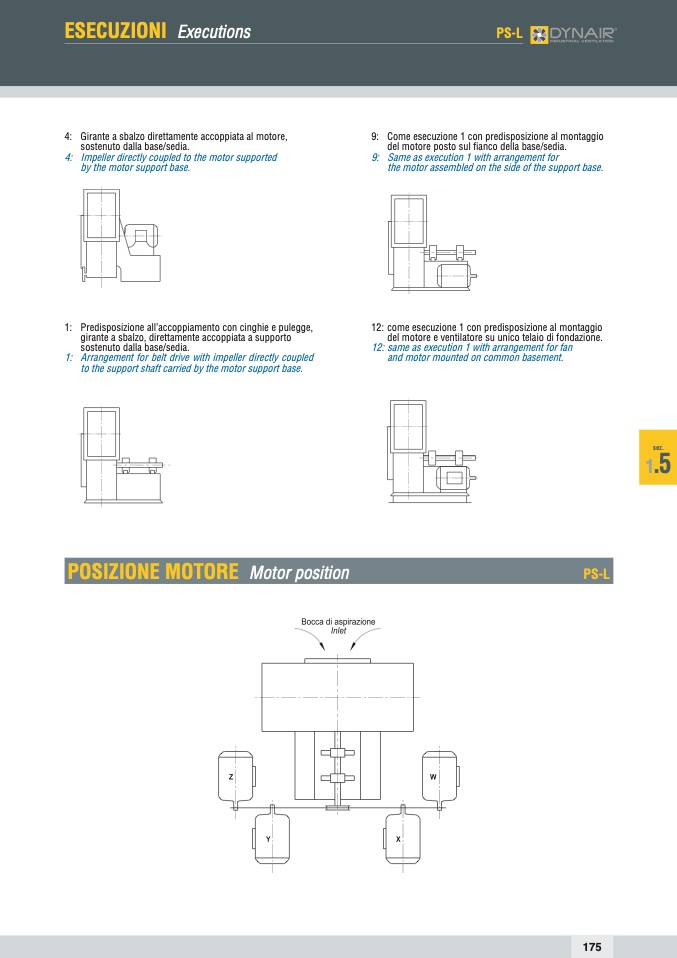

ESECUZIONI Executions

PS-L

4: Girante a sbalzo direttamente accoppiata al motore,

sostenuto dalla base/sedia.

4: Impeller directly coupled to the motor supported

by the motor support base.

9: Come esecuzione 1 con predisposizione al montaggio

del motore posto sul fianco della base/sedia.

9: Same as execution 1 with arrangement for

the motor assembled on the side of the support base.

1: Predisposizione all’accoppiamento con cinghie e pulegge,

girante a sbalzo, direttamente accoppiata a supporto

sostenuto dalla base/sedia.

1: Arrangement for belt drive with impeller directly coupled

to the support shaft carried by the motor support base.

12: come esecuzione 1 con predisposizione al montaggio

del motore e ventilatore su unico telaio di fondazione.

12: same as execution 1 with arrangement for fan

and motor mounted on common basement.

POSIZIONE MOTORE Motor position

PS-L

sez.

1

.5

175
