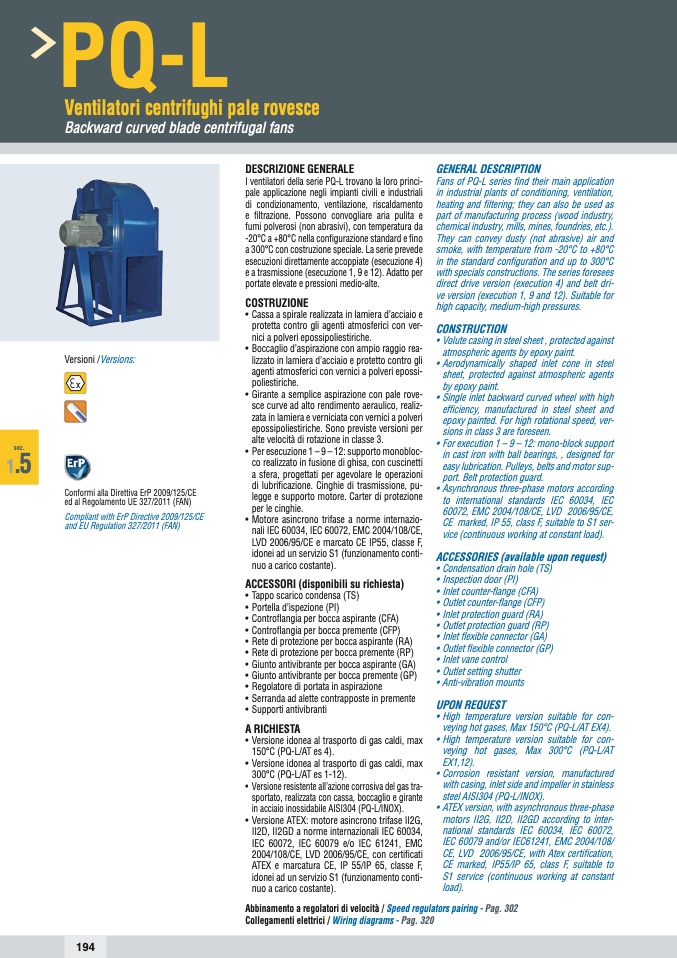

PQ-L

Ventilatori centrifughi pale rovesce

Backward curved blade centrifugal fans

Versioni /Versions:

Conformi alla Direttiva ErP 2009/125/CE

ed al Regolamento UE 327/2011 (FAN)

Compliant with ErP Directive 2009/125/CE

and EU Regulation 327/2011 (FAN)

DESCRIZIONE GENERALE

I ventilatori della serie PQ-L trovano la loro princi-

pale applicazione negli impianti civili e industriali

di condizionamento, ventilazione, riscaldamento

e filtrazione. Possono convogliare aria pulita e

fumi polverosi (non abrasivi), con temperatura da

-20°C a +80°C nella configurazione standard e fino

a 300°C con costruzione speciale. La serie prevede

esecuzioni direttamente accoppiate (esecuzione 4)

e a trasmissione (esecuzione 1, 9 e 12). Adatto per

portate elevate e pressioni medio-alte.

COSTRUZIONE

• Cassa a spirale realizzata in lamiera d’acciaio e

protetta contro gli agenti atmosferici con ver-

nici a polveri epossipoliestiriche.

• Boccaglio d’aspirazione con ampio raggio rea-

lizzato in lamiera d’acciaio e protetto contro gli

agenti atmosferici con vernici a polveri epossi-

poliestiriche.

• Girante a semplice aspirazione con pale rove-

sce curve ad alto rendimento aeraulico, realiz-

zata in lamiera e verniciata con vernici a polveri

epossipoliestiriche. Sono previste versioni per

alte velocità di rotazione in classe 3.

• Per esecuzione 1 – 9 – 12: supporto monobloc-

co realizzato in fusione di ghisa, con cuscinetti

a sfera, progettati per agevolare le operazioni

di lubrificazione. Cinghie di trasmissione, pu-

legge e supporto motore. Carter di protezione

per le cinghie.

• Motore asincrono trifase a norme internazio-

nali IEC 60034, IEC 60072, EMC 2004/108/CE,

LVD 2006/95/CE e marcato CE IP55, classe F,

idonei ad un servizio S1 (funzionamento conti-

nuo a carico costante).

ACCESSORI (disponibili su richiesta)

• Tappo scarico condensa (TS)

• Portella d’ispezione (PI)

• Controflangia per bocca aspirante (CFA)

• Controflangia per bocca premente (CFP)

• Rete di protezione per bocca aspirante (RA)

• Rete di protezione per bocca premente (RP)

• Giunto antivibrante per bocca aspirante (GA)

• Giunto antivibrante per bocca premente (GP)

• Regolatore di portata in aspirazione

• Serranda ad alette contrapposte in premente

• Supporti antivibranti

A RICHIESTA

• Versione idonea al trasporto di gas caldi, max

150°C (PQ-L/AT es 4).

• Versione idonea al trasporto di gas caldi, max

300°C (PQ-L/AT es 1-12).

• Versione resistente all’azione corrosiva del gas tra-

sportato, realizzata con cassa, boccaglio e girante

in acciaio inossidabile AISI304 (PQ-L/INOX).

• Versione ATEX: motore asincrono trifase II2G,

II2D, II2GD a norme internazionali IEC 60034,

IEC 60072, IEC 60079 e/o IEC 61241, EMC

2004/108/CE, LVD 2006/95/CE, con certificati

ATEX e marcatura CE, IP 55/IP 65, classe F,

idonei ad un servizio S1 (funzionamento conti-

nuo a carico costante).

GENERAL DESCRIPTION

Fans of PQ-L series find their main application

in industrial plants of conditioning, ventilation,

heating and filtering; they can also be used as

part of manufacturing process (wood industry,

chemical industry, mills, mines, foundries, etc.).

They can convey dusty (not abrasive) air and

smoke, with temperature from -20°C to +80°C

in the standard configuration and up to 300°C

with specials constructions. The series foresees

direct drive version (execution 4) and belt dri-

ve version (execution 1, 9 and 12). Suitable for

high capacity, medium-high pressures.

CONSTRUCTION

• Volute casing in steel sheet , protected against

atmospheric agents by epoxy paint.

• Aerodynamically shaped inlet cone in steel

sheet, protected against atmospheric agents

by epoxy paint.

• Single inlet backward curved wheel with high

efficiency, manufactured in steel sheet and

epoxy painted. For high rotational speed, ver-

sions in class 3 are foreseen.

• For execution 1 – 9 – 12: mono-block support

in cast iron with ball bearings, , designed for

easy lubrication. Pulleys, belts and motor sup-

port. Belt protection guard.

• Asynchronous three-phase motors according

to international standards IEC 60034, IEC

60072, EMC 2004/108/CE, LVD 2006/95/CE,

CE marked, IP 55, class F, suitable to S1 ser-

vice (continuous working at constant load).

ACCESSORIES (available upon request)

• Condensation drain hole (TS)

• Inspection door (PI)

• Inlet counter-flange (CFA)

• Outlet counter-flange (CFP)

• Inlet protection guard (RA)

• Outlet protection guard (RP)

• Inlet flexible connector (GA)

• Outlet flexible connector (GP)

• Inlet vane control

• Outlet setting shutter

• Anti-vibration mounts

UPON REQUEST

• High temperature version suitable for con-

veying hot gases, Max 150°C (PQ-L/AT EX4).

• High temperature version suitable for con-

veying hot gases, Max 300°C (PQ-L/AT

EX1,12).

• Corrosion resistant version, manufactured

with casing, inlet side and impeller in stainless

steel AISI304 (PQ-L/INOX).

• ATEX version, with asynchronous three-phase

motors II2G, II2D, II2GD according to inter-

national standards IEC 60034, IEC 60072,

IEC 60079 and/or IEC61241, EMC 2004/108/

CE, LVD 2006/95/CE, with Atex certification,

CE marked, IP55/IP 65, class F, suitable to

S1 service (continuous working at constant

load).

sez.

1

.5

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320
