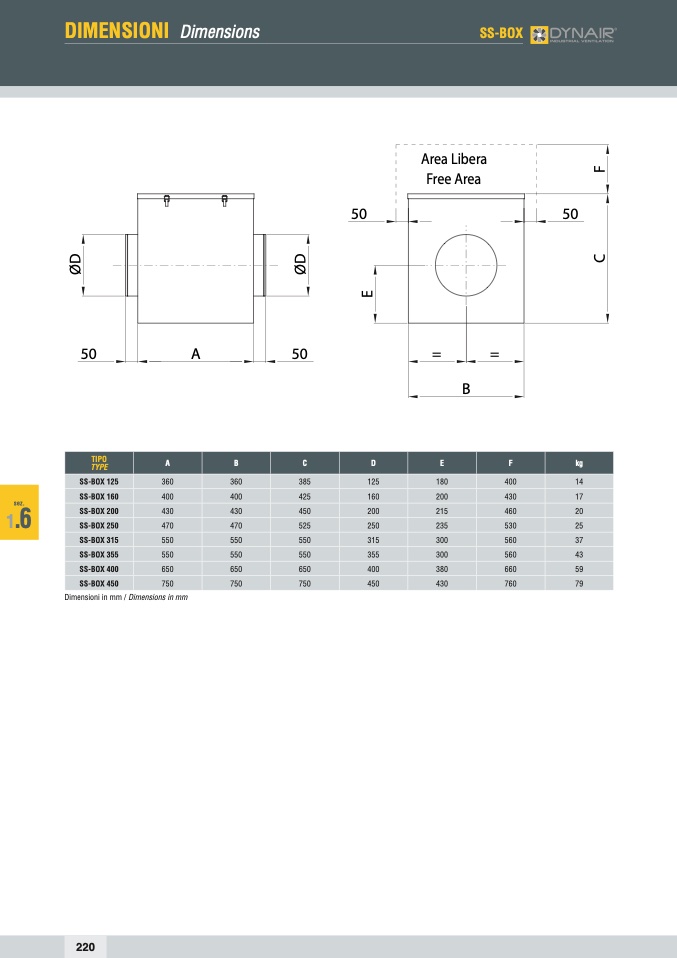

DIMENSIONI Dimensions

SS-BOX

Area Libera

Free Area

50

50

50

50

A

=

=

sez.

1

.6

B

TIPO

TYPE

A

B

C D E F kg

SS-BOX 125 360

360

385 125 180 400 14

SS-BOX 160 400

400

425 160 200 430 17

SS-BOX 200 430

430

450 200 215 460 20

SS-BOX 250 470

470

525 250 235 530 25

SS-BOX 315 550

550

550 315 300 560 37

SS-BOX 355 550

550

550 355 300 560 43

SS-BOX 400 650

650

650 400 380 660 59

SS-BOX 450 750

750

750 450 430 760 79

Dimensioni in mm / Dimensions in mm

220

Ø

D

E

Ø

D

C

F
