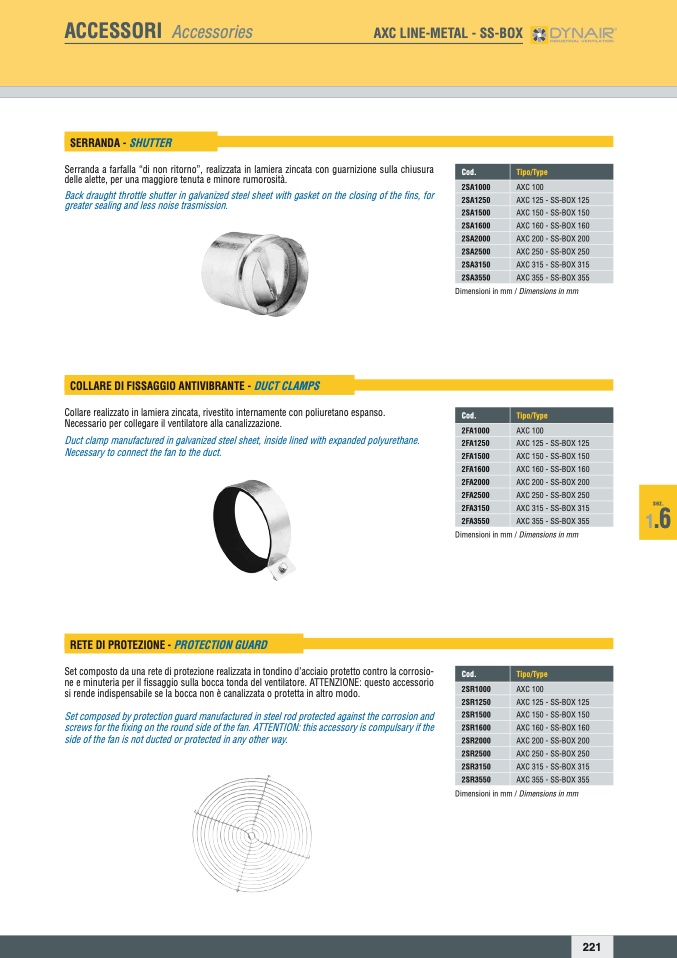

ACCESSORI Accessories

AXC LINE-METAL - SS-BOX

SERRANDA - SHUTTER

Serranda a farfalla “di non ritorno”, realizzata in lamiera zincata con guarnizione sulla chiusura

delle alette, per una maggiore tenuta e minore rumorosità.

Back draught throttle shutter in galvanized steel sheet with gasket on the closing of the fins, for

greater sealing and less noise trasmission.

Cod.

Tipo/Type

2SA1000

AXC 100

2SA1250

AXC 125 - SS-BOX 125

2SA1500

AXC 150 - SS-BOX 150

2SA1600

AXC 160 - SS-BOX 160

2SA2000

AXC 200 - SS-BOX 200

2SA2500

AXC 250 - SS-BOX 250

2SA3150

AXC 315 - SS-BOX 315

2SA3550

AXC 355 - SS-BOX 355

COLLARE DI FISSAGGIO ANTIVIBRANTE - DUCT CLAMPS

Collare realizzato in lamiera zincata, rivestito internamente con poliuretano espanso.

Necessario per collegare il ventilatore alla canalizzazione.

Duct clamp manufactured in galvanized steel sheet, inside lined with expanded polyurethane.

Necessary to connect the fan to the duct.

Dimensioni in mm / Dimensions in mm

Cod.

Tipo/Type

2FA1000

AXC 100

2FA1250

AXC 125 - SS-BOX 125

2FA1500

AXC 150 - SS-BOX 150

2FA1600

AXC 160 - SS-BOX 160

2FA2000

AXC 200 - SS-BOX 200

2FA2500

AXC 250 - SS-BOX 250

2FA3150

AXC 315 - SS-BOX 315

2FA3550

AXC 355 - SS-BOX 355

RETE DI PROTEZIONE - PROTECTION GUARD

Set composto da una rete di protezione realizzata in tondino d’acciaio protetto contro la corrosio-

ne e minuteria per il fissaggio sulla bocca tonda del ventilatore. ATTENZIONE: questo accessorio

si rende indispensabile se la bocca non

è canalizzata o protetta in altro modo.

Set composed by protection guard manufactured in steel rod protected against the corrosion and

screws for the fixing on the round side of the fan. ATTENTION: this accessory is compulsary if the

side of the fan is not ducted or protected in any other way.

Dimensioni in mm / Dimensions in mm

Cod.

Tipo/Type

2SR1000

AXC 100

2SR1250

AXC 125 - SS-BOX 125

2SR1500

AXC 150 - SS-BOX 150

2SR1600

AXC 160 - SS-BOX 160

2SR2000

AXC 200 - SS-BOX 200

2SR2500

AXC 250 - SS-BOX 250

2SR3150

AXC 315 - SS-BOX 315

2SR3550

AXC 355 - SS-BOX 355

Dimensioni in mm / Dimensions in mm
