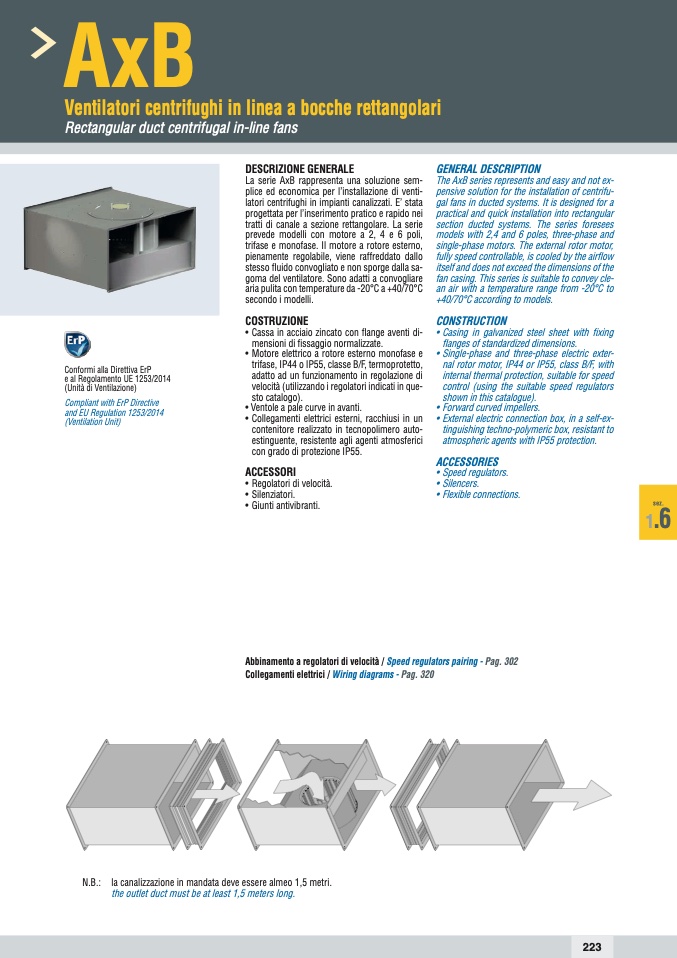

AxB

Ventilatori centrifughi in linea a bocche rettangolari

Rectangular duct centrifugal in-line fans

Conformi alla Direttiva ErP

e al Regolamento UE 1253/2014

(Unità di Ventilazione)

Compliant with ErP Directive

and EU Regulation 1253/2014

(Ventilation Unit)

DESCRIZIONE GENERALE

La serie AxB rappresenta una soluzione sem-

plice ed economica per l’installazione di venti-

latori centrifughi in impianti canalizzati. E’ stata

progettata per l’inserimento pratico e rapido nei

tratti di canale a sezione rettangolare. La serie

prevede modelli con motore a 2, 4 e 6 poli,

trifase e monofase. Il motore a rotore esterno,

pienamente regolabile, viene raffreddato dallo

stesso fluido convogliato e non sporge dalla sa-

goma del ventilatore. Sono adatti a convogliare

aria pulita con temperature da -20°C a +40/70°C

secondo i modelli.

COSTRUZIONE

• Cassa in acciaio zincato con flange aventi di-

mensioni di fissaggio normalizzate.

• Motore elettrico a rotore esterno monofase e

trifase, IP44 o IP55, classe B/F, termoprotetto,

adatto ad un funzionamento in regolazione di

velocità (utilizzando i regolatori indicati in que-

sto catalogo).

• Ventole a pale curve in avanti.

• Collegamenti elettrici esterni, racchiusi in un

contenitore realizzato in tecnopolimero auto-

estinguente, resistente agli agenti atmosferici

con grado di protezione IP55.

ACCESSORI

• Regolatori di velocità.

• Silenziatori.

• Giunti antivibranti.

GENERAL DESCRIPTION

The AxB series represents and easy and not ex-

pensive solution for the installation of centrifu-

gal fans in ducted systems. It is designed for a

practical and quick installation into rectangular

section ducted systems. The series foresees

models with 2,4 and 6 poles, three-phase and

single-phase motors. The external rotor motor,

fully speed controllable, is cooled by the airflow

itself and does not exceed the dimensions of the

fan casing. This series is suitable to convey cle-

an air with a temperature range from -20°C to

+40/70°C according to models.

CONSTRUCTION

• Casing in galvanized steel sheet with fixing

flanges of standardized dimensions.

• Single-phase and three-phase electric exter-

nal rotor motor, IP44 or IP55, class B/F, with

internal thermal protection, suitable for speed

control (using the suitable speed regulators

shown in this catalogue).

• Forward curved impellers.

• External electric connection box, in a self-ex-

tinguishing techno-polymeric box, resistant to

atmospheric agents with IP55 protection.

ACCESSORIES

• Speed regulators.

• Silencers.

• Flexible connections.

N.B.: la canalizzazione in mandata deve essere almeo 1,5 metri.

the outlet duct must be at least 1,5 meters long.

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320
