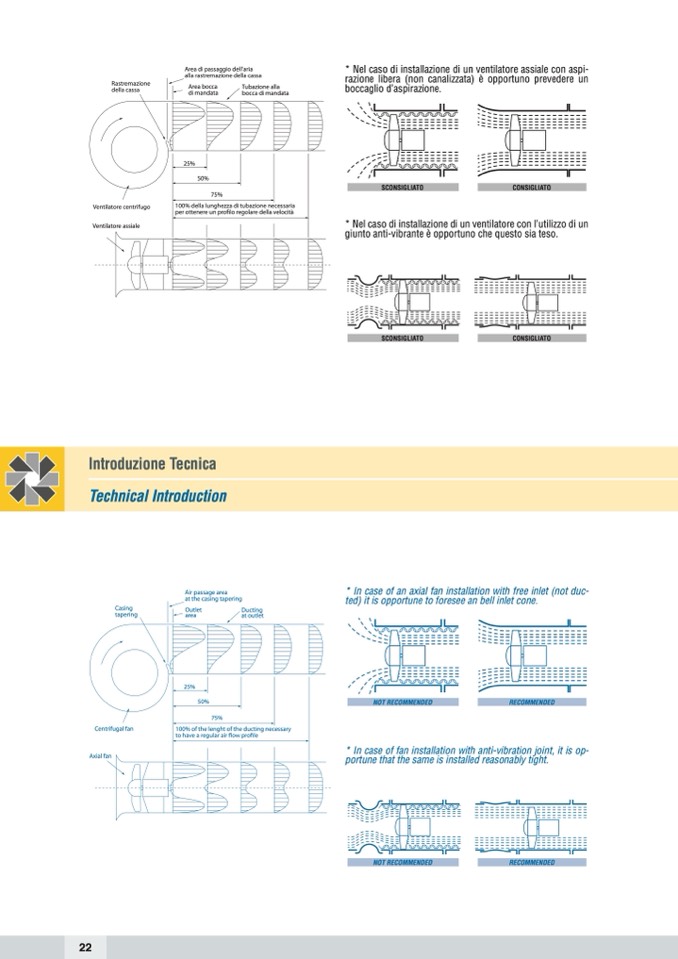

Area di passaggio dell’aria

alla rastremazione della cassa

* Nel caso di installazione di un ventilatore assiale con aspi-

razione libera (non canalizzata) è opportuno prevedere un

boccaglio d’aspirazione.

Rastremazione

della cassa

Ventilatore centrifugo

Ventilatore assiale

Area bocca

di mandata

Tubazione alla

bocca di mandata

25%

50%

75%

SCONSIGLIATO

CONSIGLIATO

100% della lunghezza di tubazione necessaria

per ottenere un profilo regolare della velocità

* Nel caso di installazione di un ventilatore con l’utilizzo di un

giunto anti-vibrante è opportuno che questo sia teso.

SCONSIGLIATO

CONSIGLIATO

Introduzione Tecnica

Technical Introduction

Air passage area

at the casing tapering

* In case of an axial fan installation with free inlet (not duc-

ted) it is opportune to foresee an bell inlet cone.

Casing

tapering

Centrifugal fan

Axial fan

Outlet

area

Ducting

at outlet

25%

75%

50%

NOT RECOMMENDED

RECOMMENDED

100% of the lenght of the ducting necessary

to have a regular air flow profile

* In case of fan installation with anti-vibration joint, it is op-

portune that the same is installed reasonably tight.

NOT RECOMMENDED

RECOMMENDED
