SCONSIGLIATO

CONSIGLIATO

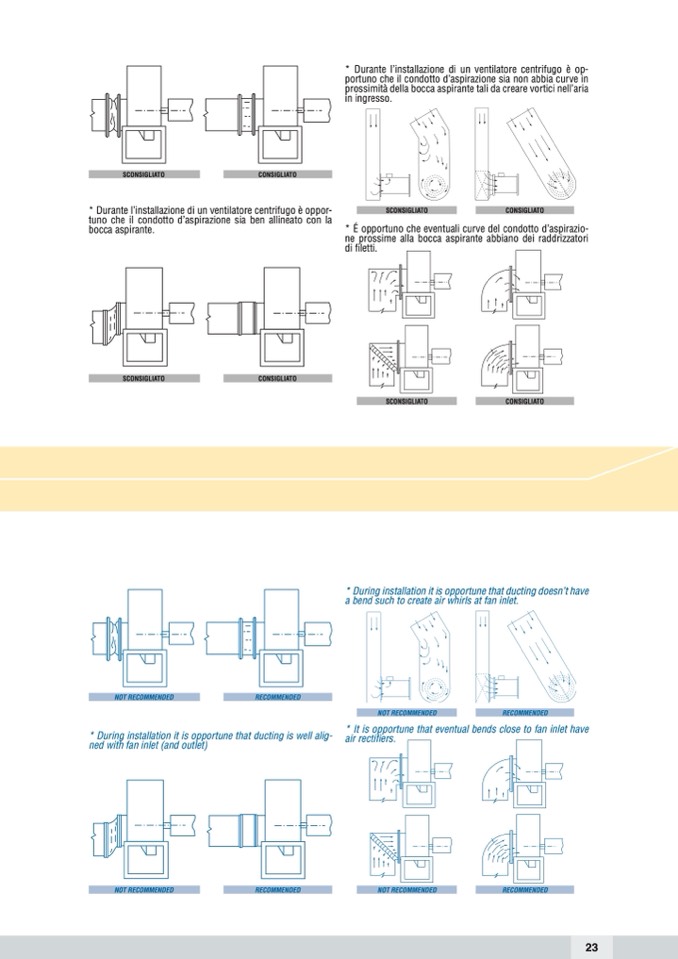

* Durante l’installazione di un ventilatore centrifugo è oppor-

tuno che il condotto d’aspirazione sia ben allineato con la

bocca aspirante.

SCONSIGLIATO

CONSIGLIATO

* Durante l’installazione di un ventilatore centrifugo è op-

portuno che il condotto d’aspirazione sia non abbia curve in

prossimità della bocca aspirante tali da creare vortici nell’aria

in ingresso.

SCONSIGLIATO

CONSIGLIATO

* É opportuno che eventuali curve del condotto d’aspirazio-

ne prossime alla bocca aspirante abbiano dei raddrizzatori

di filetti.

SCONSIGLIATO

CONSIGLIATO

NOT RECOMMENDED

RECOMMENDED

* During installation it is opportune that ducting is well alig-

ned with fan inlet (and outlet)

* During installation it is opportune that ducting doesn’t have

a bend such to create air whirls at fan inlet.

NOT RECOMMENDED

RECOMMENDED

* It is opportune that eventual bends close to fan inlet have

air rectifiers.

NOT RECOMMENDED

RECOMMENDED

NOT RECOMMENDED

RECOMMENDED
