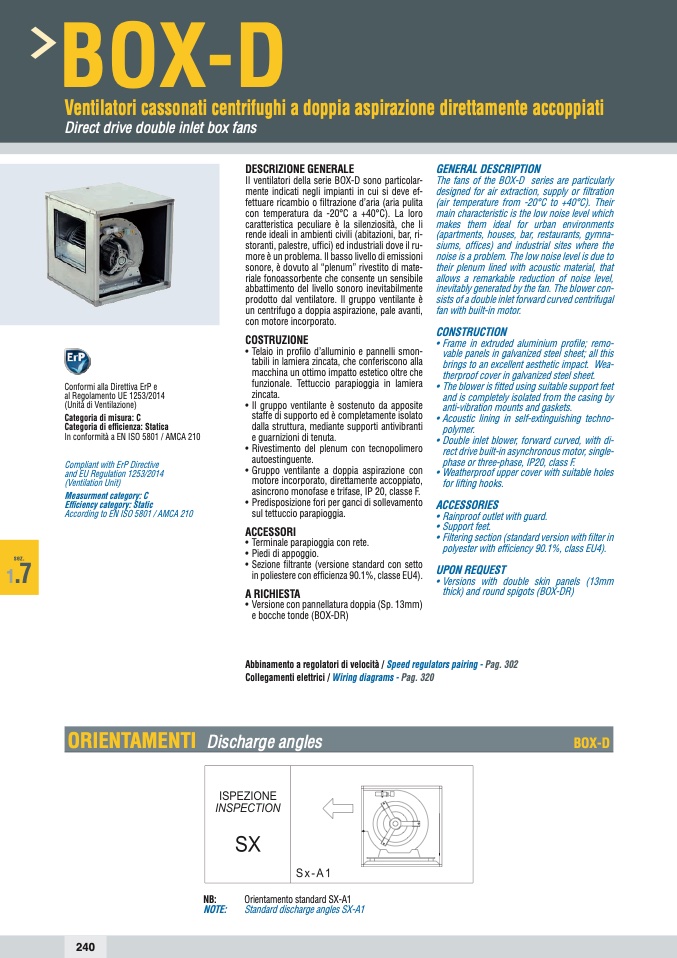

BOX-D

Ventilatori cassonati centrifughi a doppia aspirazione direttamente accoppiati

Direct drive double inlet box fans

sez.

1

.7

Conformi alla Direttiva ErP e

al Regolamento UE 1253/2014

(Unità di Ventilazione)

Categoria di misura: C

Categoria di efficienza: Statica

In conformità a EN ISO 5801 / AMCA 210

Compliant with ErP Directive

and EU Regulation 1253/2014

(Ventilation Unit)

Measurment category: C

Efficiency category: Static

According to EN ISO 5801 / AMCA 210

GENERAL DESCRIPTION

The fans of the BOX-D series are particularly

designed for air extraction, supply or filtration

(air temperature from -20°C to +40°C). Their

main characteristic is the low noise level which

makes them ideal for urban environments

(apartments, houses, bar, restaurants, gymna-

siums, offices) and industrial sites where the

noise is a problem. The low noise level is due to

their plenum lined with acoustic material, that

allows a remarkable reduction of noise level,

inevitably generated by the fan. The blower con-

sists of a double inlet forward curved centrifugal

fan with built-in motor.

CONSTRUCTION

• Frame in extruded aluminium profile; remo-

vable panels in galvanized steel sheet; all this

brings to an excellent aesthetic impact. Wea-

therproof cover in galvanized steel sheet.

• The blower is fitted using suitable support feet

and is completely isolated from the casing by

anti-vibration mounts and gaskets.

• Acoustic lining in self-extinguishing techno-

polymer.

• Double inlet blower, forward curved, with di-

rect drive built-in asynchronous motor, single-

phase or three-phase, IP20, class F.

• Weatherproof upper cover with suitable holes

for lifting hooks.

ACCESSORIES

• Rainproof outlet with guard.

• Support feet.

• Filtering section (standard version with filter in

polyester with efficiency 90.1%, class EU4).

UPON REQUEST

• Versions with double skin panels (13mm

thick) and round spigots (BOX-DR)

DESCRIZIONE GENERALE

II ventilatori della serie BOX-D sono particolar-

mente indicati negli impianti in cui si deve ef-

fettuare ricambio o filtrazione d’aria (aria pulita

con temperatura da -20°C a +40°C). La loro

caratteristica peculiare è la silenziosità, che li

rende ideali in ambienti civili (abitazioni, bar, ri-

storanti, palestre, uffici) ed industriali dove il ru-

more è un problema. Il basso livello di emissioni

sonore, è dovuto al “plenum” rivestito di mate-

riale fonoassorbente che consente un sensibile

abbattimento del livello sonoro inevitabilmente

prodotto dal ventilatore. Il gruppo ventilante è

un centrifugo a doppia aspirazione, pale avanti,

con motore incorporato.

COSTRUZIONE

• Telaio in profilo d’alluminio e pannelli smon-

tabili in lamiera zincata, che conferiscono alla

macchina un ottimo impatto estetico oltre che

funzionale. Tettuccio parapioggia in lamiera

zincata.

• Il gruppo ventilante è sostenuto da apposite

staffe di supporto ed è completamente isolato

dalla struttura, mediante supporti antivibranti

e guarnizioni di tenuta.

• Rivestimento del plenum con tecnopolimero

autoestinguente.

• Gruppo ventilante a doppia aspirazione con

motore incorporato, direttamente accoppiato,

asincrono monofase e trifase, IP 20, classe F.

• Predisposizione fori per ganci di sollevamento

sul tettuccio parapioggia.

ACCESSORI

• Terminale parapioggia con rete.

• Piedi di appoggio.

• Sezione filtrante (versione standard con setto

in poliestere con efficienza 90.1%, classe EU4).

A RICHIESTA

• Versione con pannellatura doppia (Sp. 13mm)

e bocche tonde (BOX-DR)

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320

ORIENTAMENTI Discharge angles

NB:

Orientamento standard SX-A1

NOTE:

Standard discharge angles SX-A1

BOX-D

240
