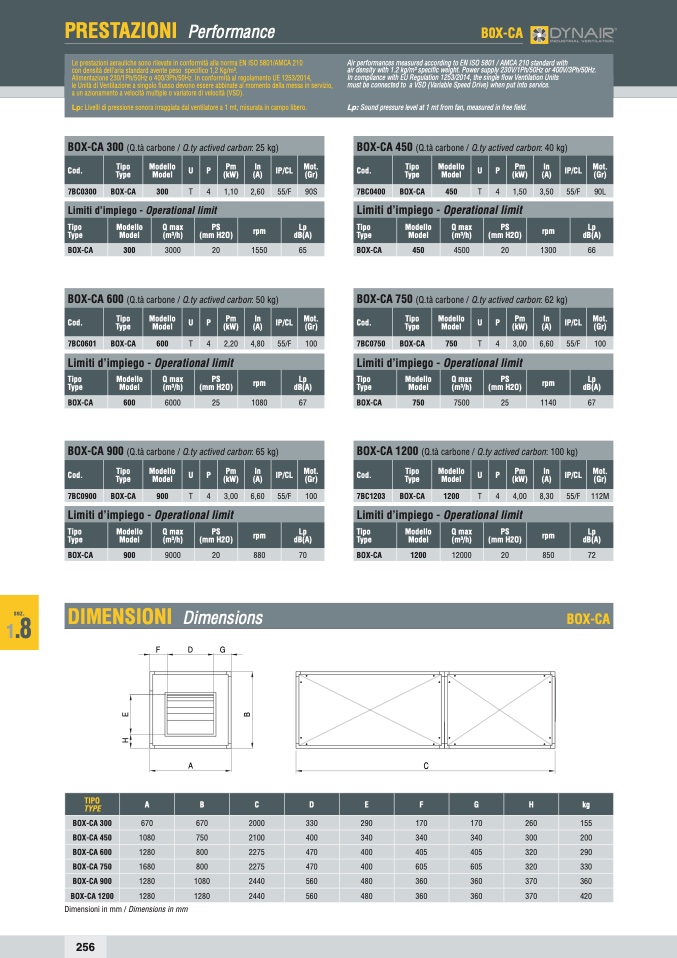

PRESTAZIONI Performance
B0X-CA
Le prestazioni aerauliche sono rilevate in conformità alla norma EN ISO 5801/AMCA 210
con densità dell’aria standard avente peso specifico 1,2 Kg/m3.
Alimentazione 230/1Ph/50Hz o 400/3Ph/50Hz. In conformità al regolamento UE 1253/2014,
le Unità di Ventilazione a singolo flusso devono essere abbinate al momento della messa in servizio,
a un azionamento a velocità multiple o variatore di velocità (VSD).
Lp: Livelli di pressione sonora irraggiata dal ventilatore a 1 mt, misurata in campo libero.
Air performances measured according to EN ISO 5801 / AMCA 210 standard with
air density with 1.2 kg/m3 specific weight. Power supply 230V/1Ph/50Hz or 400V/3Ph/50Hz.
In compliance with EU Regulation 1253/2014, the single flow Ventilation Units
must be connected to a VSD (Variable Speed Drive) when put into service.
Lp: Sound pressure level at 1 mt from fan, measured in free field.
BOX-CA 300 (Q.tà carbone / Q.ty actived carbon: 25 kg)
Cod.
Tipo
Type
Modello
Model
U P
Pm
(kW)
In
(A)
IP/CL
Mot.
(Gr)
7BC0300
BOX-CA
300 T 4 1,10 2,60
55/F
90S
Limiti d’impiego - Operational limit
Tipo
Type
Modello
Model
Q max
(m3/h)
PS
(mm H2O)
rpm
Lp
dB(A)
BOX-CA 300 3000 20
1550
65
BOX-CA 450 (Q.tà carbone / Q.ty actived carbon: 40 kg)
Cod.
Tipo
Type
Modello
Model
U P
Pm
(kW)
In
(A)
IP/CL
Mot.
(Gr)
7BC0400
BOX-CA
450 T 4 1,50
3,50
55/F
90L
Limiti d’impiego - Operational limit
Tipo
Type
Modello
Model
Q max
(m3/h)
PS
(mm H2O)
rpm
Lp
dB(A)
BOX-CA 450 4500
20
1300
66
BOX-CA 600 (Q.tà carbone / Q.ty actived carbon: 50 kg)
Cod.
Tipo
Type
Modello
Model
U P
Pm
(kW)
In
(A)
IP/CL
Mot.
(Gr)
7BC0601
BOX-CA
600 T 4 2,20 4,80
55/F
100
Limiti d’impiego - Operational limit
Tipo
Type
Modello
Model
Q max
(m3/h)
PS
(mm H2O)
rpm
Lp
dB(A)
BOX-CA 600 6000 25
1080
67
BOX-CA 750 (Q.tà carbone / Q.ty actived carbon: 62 kg)
Cod.
Tipo
Type
Modello
Model
U P
Pm
(kW)
In
(A)
IP/CL
Mot.
(Gr)
7BC0750
BOX-CA
750 T 4 3,00
6,60
55/F
100
Limiti d’impiego - Operational limit
Tipo
Type
Modello
Model
Q max
(m3/h)
PS
(mm H2O)
rpm
Lp
dB(A)
BOX-CA 750 7500
25
1140
67
BOX-CA 900 (Q.tà carbone / Q.ty actived carbon: 65 kg)
Cod.
Tipo
Type
Modello
Model
U P
Pm
(kW)
In
(A)
IP/CL
Mot.
(Gr)
7BC0900
BOX-CA
900 T 4 3,00 6,60
55/F
100
Limiti d’impiego - Operational limit
Tipo
Type
Modello
Model
Q max
(m3/h)
PS
(mm H2O)
rpm
Lp
dB(A)
BOX-CA 900 9000 20
880
70
BOX-CA 1200 (Q.tà carbone / Q.ty actived carbon: 100 kg)
Cod.
Tipo
Type
Modello
Model
U P
Pm
(kW)
In
(A)
IP/CL
Mot.
(Gr)
7BC1203
BOX-CA
1200 T 4 4,00
8,30
55/F
112M
Limiti d’impiego - Operational limit
Tipo
Type
Modello
Model
Q max
(m3/h)
PS
(mm H2O)
rpm
Lp
dB(A)
BOX-CA 1200 12000
20
850
72
sez.
1
.8
DIMENSIONI Dimensions
BOX-CA
F
D
G
C
A
TIPO
TYPE
A
B C D
E
F G
H
kg
BOX-CA 300
670
670 2000 330
290
170 170
260
155
BOX-CA 450
1080
750 2100 400
340
340 340
300
200
BOX-CA 600
1280
800 2275 470
400
405 405
320
290
BOX-CA 750
1680
800 2275 470
400
605 605
320
330
BOX-CA 900
1280
1080 2440 560
480
360 360
370
360
BOX-CA 1200
1280
1280 2440 560
480
360 360
370
420
Dimensioni in mm / Dimensions in mm
256
H
E
B
