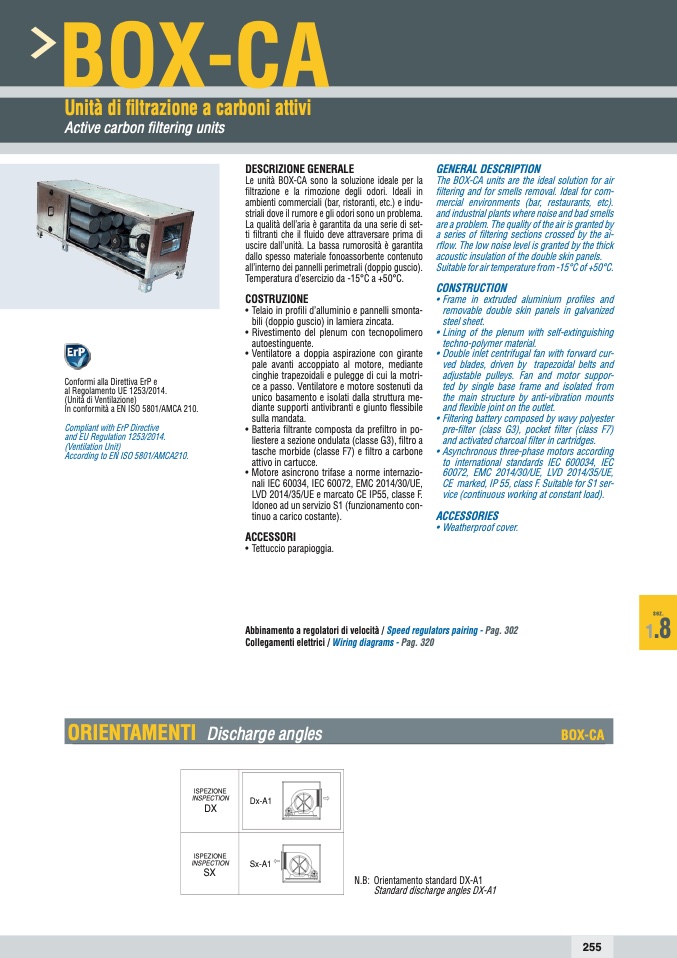

BOX-CA

Unità di filtrazione a carboni attivi

Active carbon filtering units

DESCRIZIONE GENERALE

Le unità BOX-CA sono la soluzione ideale per la

filtrazione e la rimozione degli odori. Ideali in

ambienti commerciali (bar, ristoranti, etc.) e indu-

striali dove il rumore e gli odori sono un problema.

La qualità dell’aria è garantita da una serie di set-

ti filtranti che il fluido deve attraversare prima di

uscire dall’unità. La bassa rumorosità è garantita

dallo spesso materiale fonoassorbente contenuto

all’interno dei pannelli perimetrali (doppio guscio).

Temperatura d’esercizio da -15°C a +50°C.

COSTRUZIONE

• Telaio in profili d’alluminio e pannelli smonta-

bili (doppio guscio) in lamiera zincata.

• Rivestimento del plenum con tecnopolimero

autoestinguente.

• Ventilatore a doppia aspirazione con girante

pale avanti accoppiato al motore, mediante

cinghie trapezoidali e pulegge di cui la motri-

ce a passo. Ventilatore e motore sostenuti da

unico basamento e isolati dalla struttura me-

GENERAL DESCRIPTION

The BOX-CA units are the ideal solution for air

filtering and for smells removal. Ideal for com-

mercial environments (bar, restaurants, etc).

and industrial plants where noise and bad smells

are a problem. The quality of the air is granted by

a series of filtering sections crossed by the ai-

rflow. The low noise level is granted by the thick

acoustic insulation of the double skin panels.

Suitable for air temperature from -15°C of +50°C.

CONSTRUCTION

• Frame in extruded aluminium profiles and

removable double skin panels in galvanized

steel sheet.

• Lining of the plenum with self-extinguishing

techno-polymer material.

• Double inlet centrifugal fan with forward cur-

ved blades, driven by trapezoidal belts and

adjustable pulleys. Fan and motor suppor-

ted by single base frame and isolated from

the main structure by anti-vibration mounts

and flexible joint on the outlet.

• Filtering battery composed by wavy polyester

pre-filter (class G3), pocket filter (class F7)

and activated charcoal filter in cartridges.

• Asynchronous three-phase motors according

to international standards IEC 600034, IEC

60072, EMC 2014/30/UE, LVD 2014/35/UE,

CE marked, IP 55, class F. Suitable for S1 ser-

vice (continuous working at constant load).

Conformi alla Direttiva ErP e

al Regolamento UE 1253/2014.

(Unità di Ventilazione)

In conformità a EN ISO 5801/AMCA 210.

diante supporti antivibranti e giunto flessibile

Compliant with ErP Directive

and EU Regulation 1253/2014.

(Ventilation Unit)

According to EN ISO 5801/AMCA210.

sulla mandata.

• Batteria filtrante composta da prefiltro in po-

liestere a sezione ondulata (classe G3), filtro a

tasche morbide (classe F7) e filtro a carbone

attivo in cartucce.

• Motore asincrono trifase a norme internazio-

nali IEC 60034, IEC 60072, EMC 2014/30/UE,

LVD 2014/35/UE e marcato CE IP55, classe F.

Idoneo ad un servizio S1 (funzionamento con-

tinuo a carico costante).

ACCESSORI

• Tettuccio parapioggia.

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320

ACCESSORIES

• Weatherproof cover.

ORIENTAMENTI Discharge angles

BOX-CA

Dx-A3

Sx-A3

ISPEZIONE

INSPECTION

DX

Dx-A1

ISPEZIONE

INSPECTION

SX

Sx-A1

Dx-A1b

Sx-A1b

Dx-A2

Sx-A2

N.B: Orientamento standard DX-A1

Standard discharge angles DX-A1
