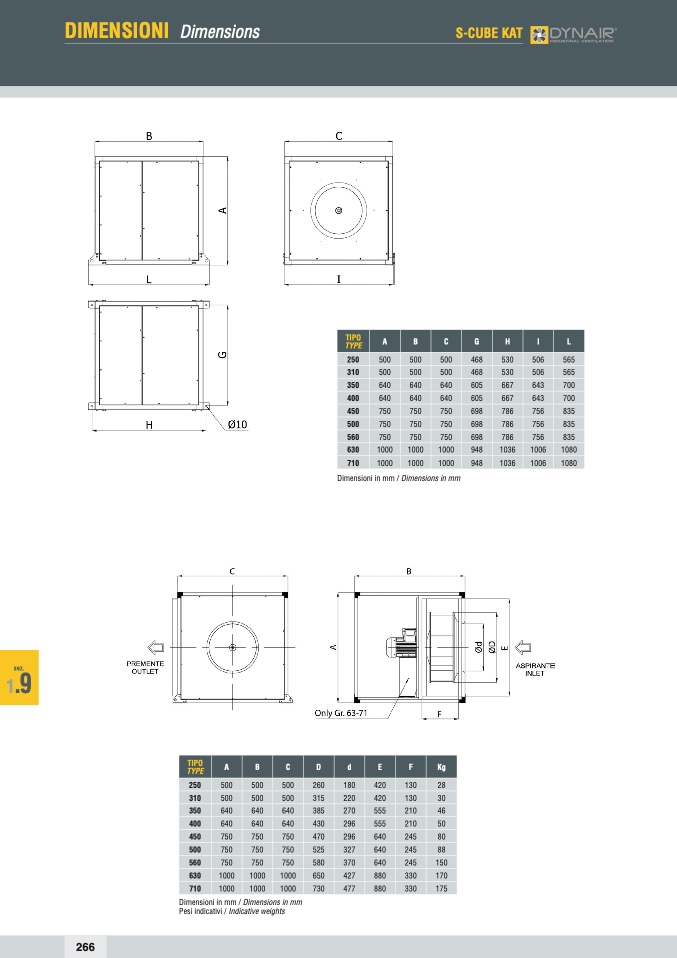

DIMENSIONI Dimensions

S-CUBE KAT

TIPO

TYPE

A

B C G

H

I

L

250 500

500 500 468

530

506

565

310 500

500 500 468

530

506

565

350 640

640 640 605

667

643

700

400 640

640 640 605

667

643

700

450 750

750 750 698

786

756

835

500 750

750 750 698

786

756

835

560 750

750 750 698

786

756

835

630 1000

1000 1000 948

1036

1006

1080

710 1000

1000 1000 948

1036

1006

1080

Dimensioni in mm / Dimensions in mm

sez.

1

.9

TIPO

TYPE

A B

C D d

E

F

Kg

250 500 500

500 260 180

420

130

28

310 500 500

500 315 220

420

130

30

350 640 640

640 385 270

555

210

46

400 640 640

640 430 296

555

210

50

450 750 750

750 470 296

640

245

80

500 750 750

750 525 327

640

245

88

560 750 750

750 580 370

640

245

150

630 1000 1000

1000 650 427

880

330

170

710 1000 1000

1000 730 477

880

330

175

Dimensioni in mm / Dimensions in mm

Pesi indicativi / Indicative weights
