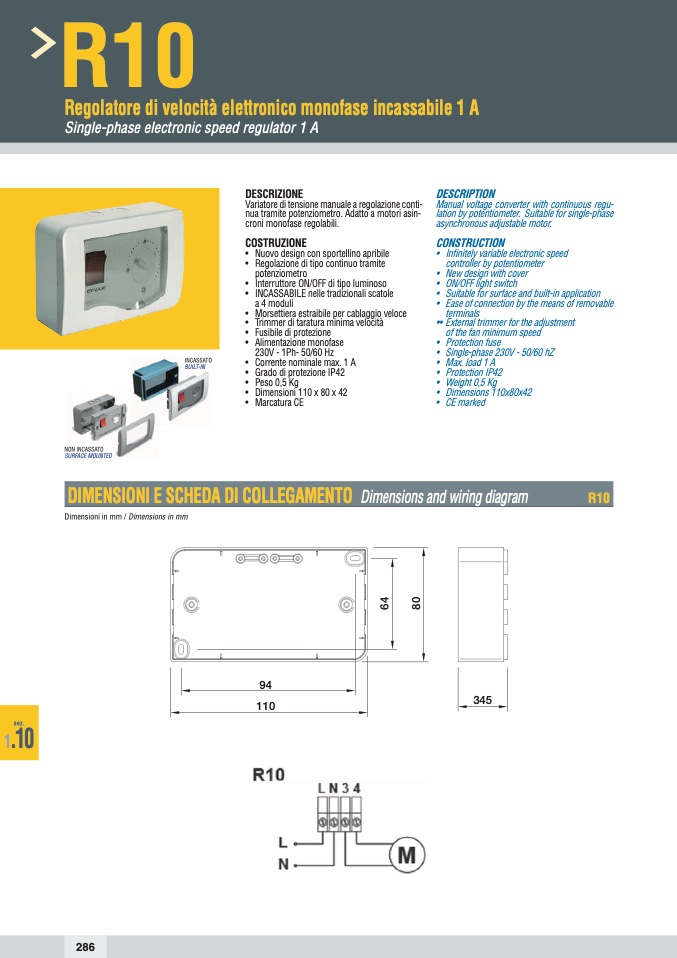

R10

Regolatore di velocità elettronico monofase incassabile 1 A

Single-phase electronic speed regulator 1 A

NON INCASSATO

SURFACE MOUNTED

INCASSATO

BUILT-IN

DESCRIZIONE

Variatore di tensione manuale a regolazione conti-

nua tramite potenziometro. Adatto a motori asin-

croni monofase regolabili.

COSTRUZIONE

• Nuovodesignconsportellinoapribile

• Regolazione di tipo continuo tramite

potenziometro

• Interruttore ON/OFF di tipo luminoso

• INCASSABILE nelle tradizionali scatole

a 4 moduli

• Morsettiera estraibile per cablaggio veloce

• Trimmer di taratura minima velocità

• Fusibile di protezione

• Alimentazione monofase

230V-1Ph-50/60Hz

• Corrente nominale max. 1 A

• Grado di protezione IP42

• Peso 0,5 Kg

• Dimensioni 110 x 80 x 42

• Marcatura CE

DESCRIPTION

Manual voltage converter with continuous regu-

lation by potentiometer. Suitable for single-phase

asynchronous adjustable motor.

CONSTRUCTION

• Infinitelyvariableelectronicspeed

controller by potentiometer

• New design with cover

• ON/OFF light switch

• Suitable for surface and built-in application

• Ease of connection by the means of removable

terminals

•• External trimmer for the adjustment

of the fan minimum speed

• Protectionfuse

• Single-phase230V-50/60hZ

• Max.load1A

• ProtectionIP42

• Weight0,5Kg

• Dimensions110x80x42

• CEmarked

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

R10

Dimensioni in mm / Dimensions in mm

6

4

8

0

286

94

110

345
