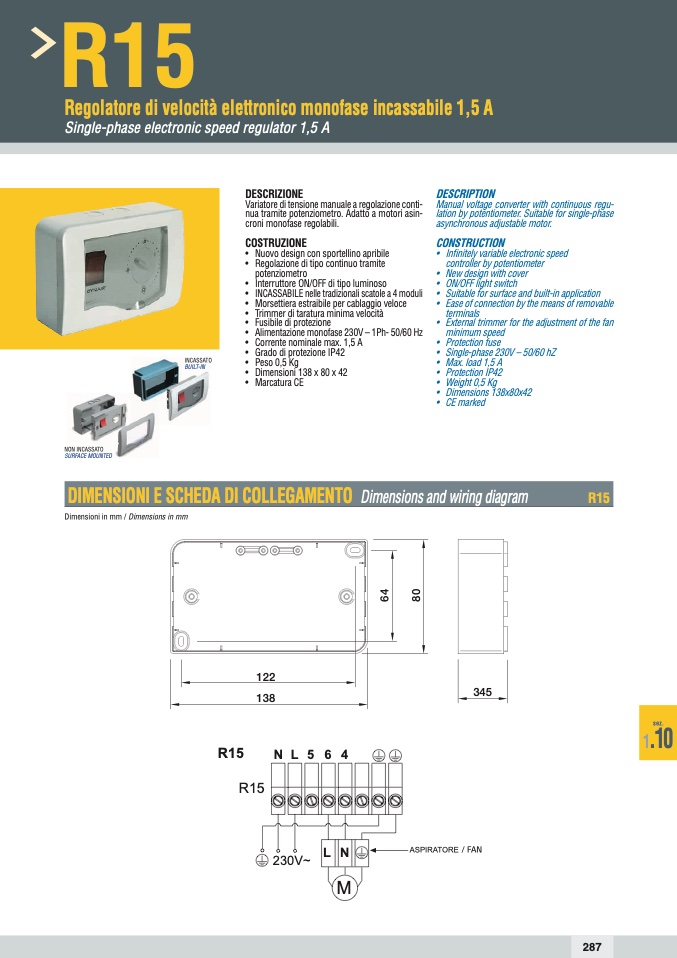

R15

Regolatore di velocità elettronico monofase incassabile 1,5 A

Single-phase electronic speed regulator 1,5 A

NON INCASSATO

SURFACE MOUNTED

INCASSATO

BUILT-IN

DESCRIZIONE

Variatore di tensione manuale a regolazione conti-

nua tramite potenziometro. Adatto a motori asin-

croni monofase regolabili.

COSTRUZIONE

• Nuovodesignconsportellinoapribile

• Regolazione di tipo continuo tramite

potenziometro

• Interruttore ON/OFF di tipo luminoso

• INCASSABILE nelle tradizionali scatole a 4 moduli

• Morsettiera estraibile per cablaggio veloce

• Trimmer di taratura minima velocità

• Fusibile di protezione

• Alimentazione monofase 230V – 1Ph- 50/60 Hz

• Corrente nominale max. 1,5 A

• Grado di protezione IP42

• Peso 0,5 Kg

• Dimensioni 138 x 80 x 42

• Marcatura CE

DESCRIPTION

Manual voltage converter with continuous regu-

lation by potentiometer. Suitable for single-phase

asynchronous adjustable motor.

CONSTRUCTION

• Infinitelyvariableelectronicspeed

controller by potentiometer

• New design with cover

• ON/OFF light switch

• Suitable for surface and built-in application

• Ease of connection by the means of removable

terminals

• External trimmer for the adjustment of the fan

minimum speed

• Protection fuse

• Single-phase 230V – 50/60 hZ

• Max. load 1,5 A

• Protection IP42

• Weight 0,5 Kg

• Dimensions138x80x42

• CEmarked

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

R15

Dimensioni in mm / Dimensions in mm

6

4

8

0

122

138

R15

NL564

R15

LN

M

VITRO 6/150A ÷ 6/150A-LC

NL564

345

R

1

5

287

230V~

ASPIRATORE / FAN
