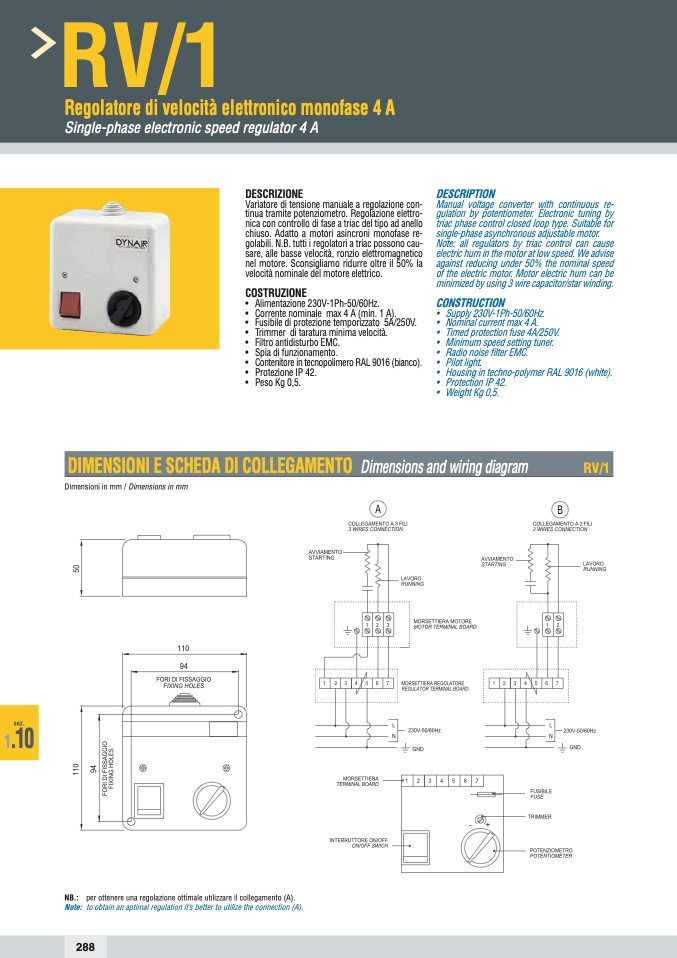

RV/1

Regolatore di velocità elettronico monofase 4 A

Single-phase electronic speed regulator 4 A

DESCRIZIONE

Variatore di tensione manuale a regolazione con-

tinua tramite potenziometro. Regolazione elettro-

nica con controllo di fase a triac del tipo ad anello

chiuso. Adatto a motori asincroni monofase re-

golabili. N.B. tutti i regolatori a triac possono cau-

sare, alle basse velocità, ronzio elettromagnetico

nel motore. Sconsigliamo ridurre oltre il 50% la

velocità nominale del motore elettrico.

COSTRUZIONE

• Alimentazione230V-1Ph-50/60Hz.

• Corrente nominale max 4 A (min. 1 A).

• Fusibile di protezione temporizzato 5A/250V.

• Trimmer di taratura minima velocità.

• Filtro antidisturbo EMC.

• Spia di funzionamento.

• Contenitore in tecnopolimero RAL 9016 (bianco).

• Protezione IP 42.

• Peso Kg 0,5.

DESCRIPTION

Manual voltage converter with continuous re-

gulation by potentiometer. Electronic tuning by

triac phase control closed loop type. Suitable for

single-phase asynchronous adjustable motor.

Note: all regulators by triac control can cause

electric hum in the motor at low speed. We advise

against reducing under 50% the nominal speed

of the electric motor. Motor electric hum can be

minimized by using 3 wire capacitor/star winding.

CONSTRUCTION

• Supply 230V-1Ph-50/60Hz.

• Nominal current max 4 A.

• Timed protection fuse 4A/250V.

• Minimum speed setting tuner.

• Radio noise filter EMC.

• Pilot light.

• Housing in techno-polymer RAL 9016 (white).

• Protection IP 42.

• WeightKg0,5.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

RV/1

Dimensioni in mm / Dimensions in mm

NB.: per ottenere una regolazione ottimale utilizzare il collegamento (A).

Note: to obtain an aptimal regulation it’s better to utilize the connection (A).
