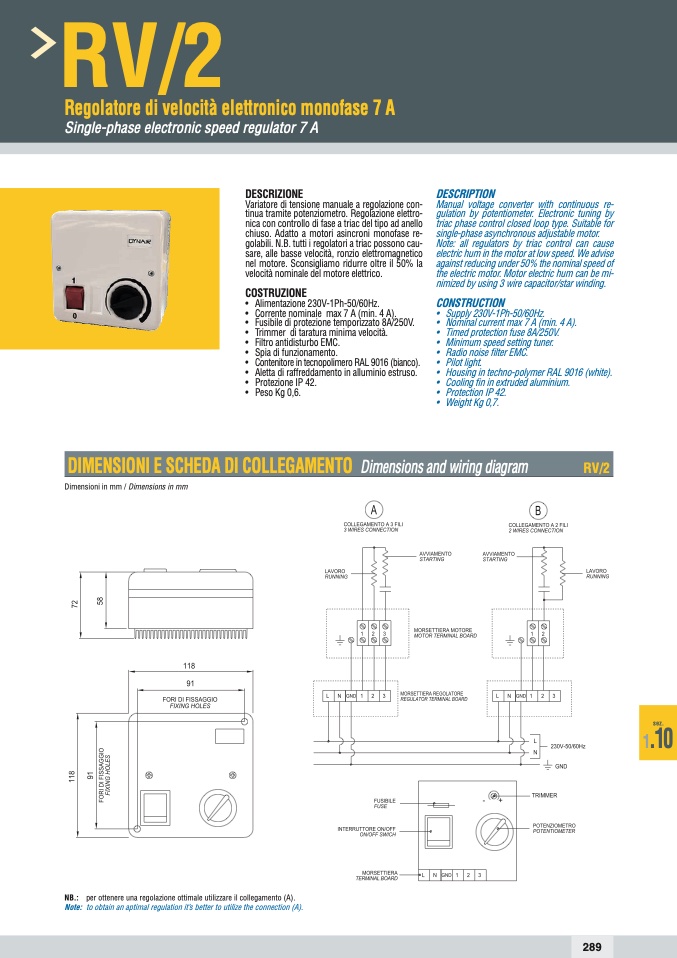

RV/2

Regolatore di velocità elettronico monofase 7 A

Single-phase electronic speed regulator 7 A

DESCRIZIONE

Variatore di tensione manuale a regolazione con-

tinua tramite potenziometro. Regolazione elettro-

nica con controllo di fase a triac del tipo ad anello

chiuso. Adatto a motori asincroni monofase re-

golabili. N.B. tutti i regolatori a triac possono cau-

sare, alle basse velocità, ronzio elettromagnetico

nel motore. Sconsigliamo ridurre oltre il 50% la

velocità nominale del motore elettrico.

COSTRUZIONE

• Alimentazione230V-1Ph-50/60Hz.

• Correntenominalemax7A(min.4A).

• Fusibilediprotezionetemporizzato8A/250V.

• Trimmerditaraturaminimavelocità.

• FiltroantidisturboEMC.

• Spiadifunzionamento.

• ContenitoreintecnopolimeroRAL9016(bianco).

• Alettadiraffreddamentoinalluminioestruso.

• ProtezioneIP42.

• PesoKg0,6.

DESCRIPTION

Manual voltage converter with continuous re-

gulation by potentiometer. Electronic tuning by

triac phase control closed loop type. Suitable for

single-phase asynchronous adjustable motor.

Note: all regulators by triac control can cause

electric hum in the motor at low speed. We advise

against reducing under 50% the nominal speed of

the electric motor. Motor electric hum can be mi-

nimized by using 3 wire capacitor/star winding.

CONSTRUCTION

• Supply 230V-1Ph-50/60Hz.

• Nominal current max 7 A (min. 4 A).

• Timed protection fuse 8A/250V.

• Minimum speed setting tuner.

• Radio noise filter EMC.

• Pilot light.

• Housing in techno-polymer RAL 9016 (white).

• Cooling fin in extruded aluminium.

• Protection IP 42.

• WeightKg0,7.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

RV/2

Dimensioni in mm / Dimensions in mm

NB.: per ottenere una regolazione ottimale utilizzare il collegamento (A).

Note: to obtain an aptimal regulation it’s better to utilize the connection (A).

289

sez.

1

.10
