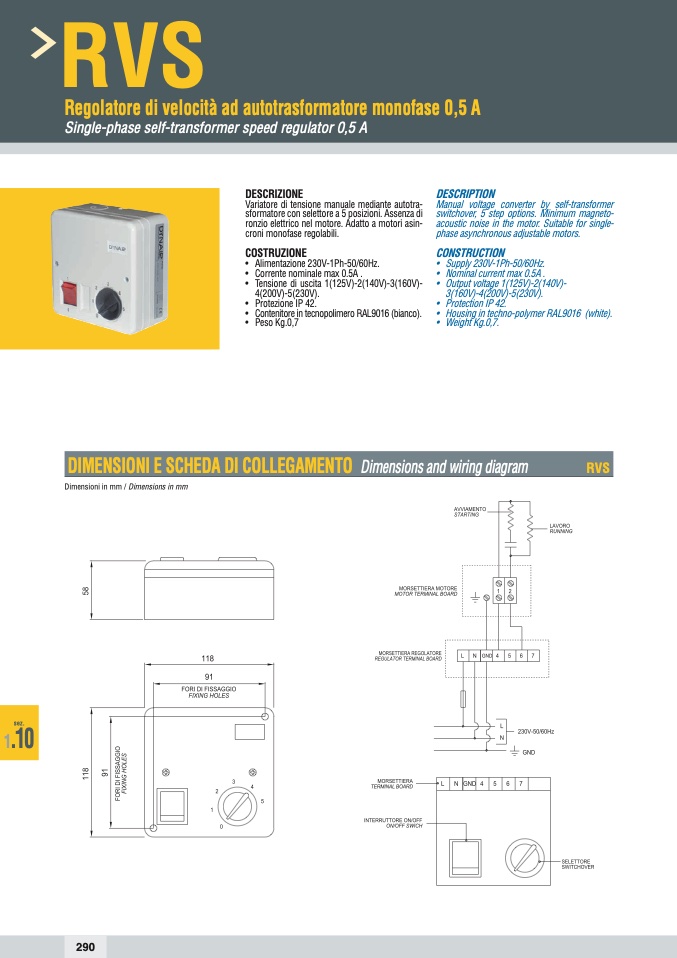

RVS

Regolatore di velocità ad autotrasformatore monofase 0,5 A

Single-phase self-transformer speed regulator 0,5 A

DESCRIZIONE

Variatore di tensione manuale mediante autotra-

sformatore con selettore a 5 posizioni. Assenza di

ronzio elettrico nel motore. Adatto a motori asin-

croni monofase regolabili.

COSTRUZIONE

• Alimentazione230V-1Ph-50/60Hz.

• Corrente nominale max 0.5A .

• Tensione di uscita 1(125V)-2(140V)-3(160V)-

4(200V)-5(230V).

• Protezione IP 42.

• Contenitore in tecnopolimero RAL9016 (bianco).

• Peso Kg.0,7

DESCRIPTION

Manual voltage converter by self-transformer

switchover, 5 step options. Minimum magneto-

acoustic noise in the motor. Suitable for single-

phase asynchronous adjustable motors.

CONSTRUCTION

• Supply 230V-1Ph-50/60Hz.

• Nominal current max 0.5A .

• Output voltage 1(125V)-2(140V)-

3(160V)-4(200V)-5(230V).

• Protection IP 42.

• Housing in techno-polymer RAL9016 (white).

• Weight Kg.0,7.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

RVS

Dimensioni in mm / Dimensions in mm
