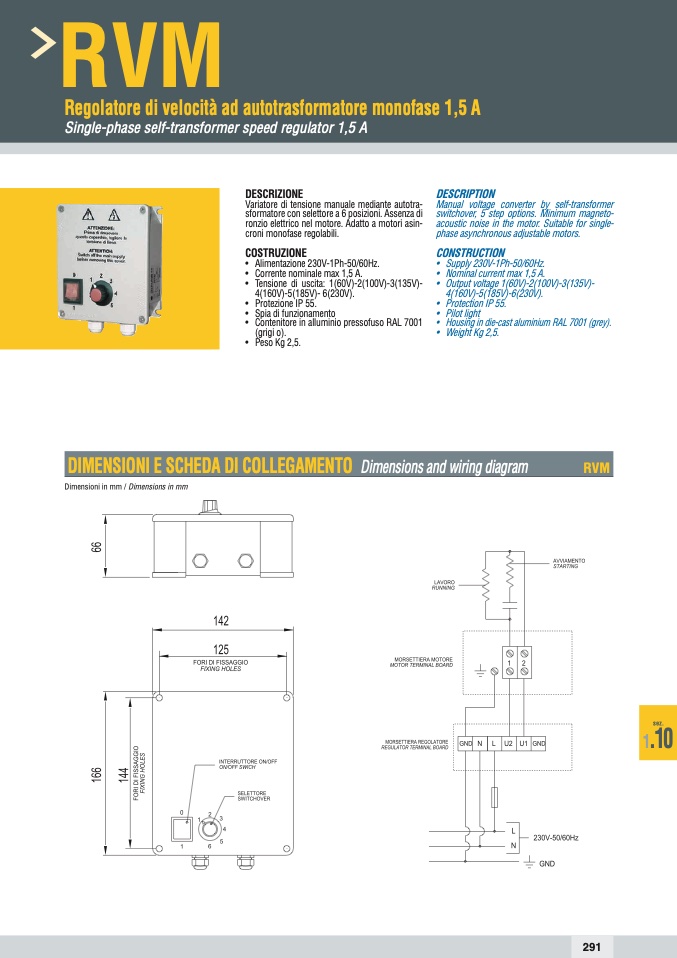

RVM

Regolatore di velocità ad autotrasformatore monofase 1,5 A

Single-phase self-transformer speed regulator 1,5 A

DESCRIZIONE

Variatore di tensione manuale mediante autotra-

sformatore con selettore a 6 posizioni. Assenza di

ronzio elettrico nel motore. Adatto a motori asin-

croni monofase regolabili.

COSTRUZIONE

• Alimentazione230V-1Ph-50/60Hz.

• Corrente nominale max 1,5 A.

• Tensione di uscita: 1(60V)-2(100V)-3(135V)-

4(160V)-5(185V)- 6(230V).

• Protezione IP 55.

• Spia di funzionamento

• Contenitore in alluminio pressofuso RAL 7001

(grigi o).

• PesoKg2,5.

DESCRIPTION

Manual voltage converter by self-transformer

switchover, 5 step options. Minimum magneto-

acoustic noise in the motor. Suitable for single-

phase asynchronous adjustable motors.

CONSTRUCTION

• Supply 230V-1Ph-50/60Hz.

• Nominal current max 1,5 A.

• Output voltage 1(60V)-2(100V)-3(135V)-

4(160V)-5(185V)-6(230V).

• Protection IP 55.

• Pilot light

• Housing in die-cast aluminium RAL 7001 (grey).

• Weight Kg 2,5.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

RVM

Dimensioni in mm / Dimensions in mm
