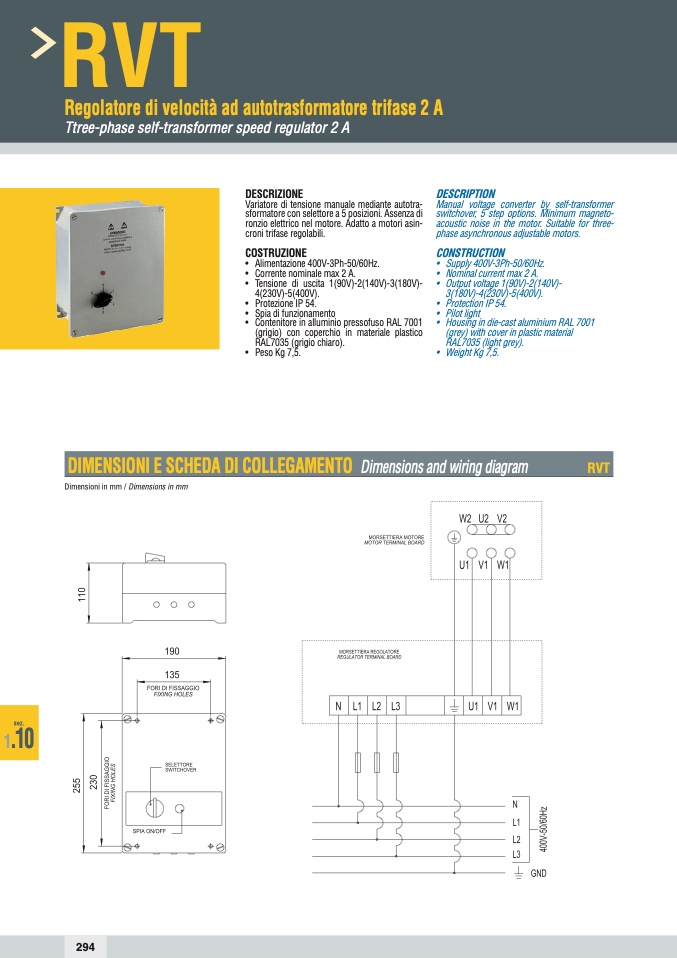

RVT

Regolatore di velocità ad autotrasformatore trifase 2 A

Ttree-phase self-transformer speed regulator 2 A

DESCRIZIONE

Variatore di tensione manuale mediante autotra-

sformatore con selettore a 5 posizioni. Assenza di

ronzio elettrico nel motore. Adatto a motori asin-

croni trifase regolabili.

COSTRUZIONE

• Alimentazione400V-3Ph-50/60Hz.

• Corrente nominale max 2 A.

• Tensione di uscita 1(90V)-2(140V)-3(180V)-

4(230V)-5(400V).

• Protezione IP 54.

• Spia di funzionamento

• Contenitore in alluminio pressofuso RAL 7001

(grigio) con coperchio in materiale plastico

RAL7035 (grigio chiaro).

• Peso Kg 7,5.

DESCRIPTION

Manual voltage converter by self-transformer

switchover, 5 step options. Minimum magneto-

acoustic noise in the motor. Suitable for three-

phase asynchronous adjustable motors.

CONSTRUCTION

• Supply 400V-3Ph-50/60Hz.

• Nominal current max 2 A.

• Output voltage 1(90V)-2(140V)-

3(180V)-4(230V)-5(400V).

• Protection IP 54.

• Pilot light

• Housing in die-cast aluminium RAL 7001

(grey) with cover in plastic material

RAL7035 (light grey).

• Weight Kg 7,5.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

RVT

Dimensioni in mm / Dimensions in mm
