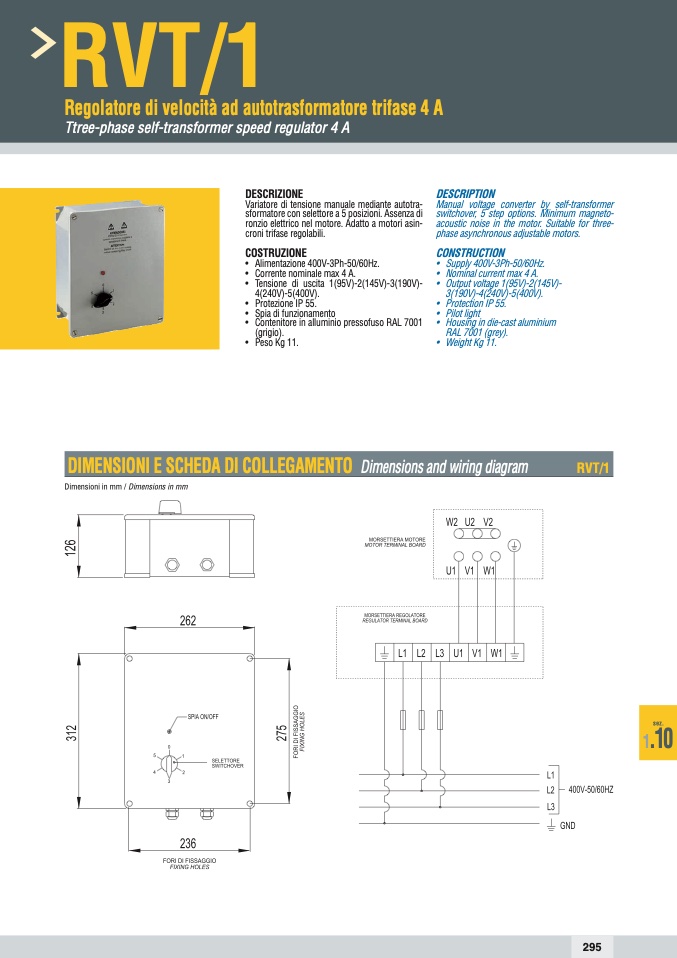

RVT/1

Regolatore di velocità ad autotrasformatore trifase 4 A

Ttree-phase self-transformer speed regulator 4 A

DESCRIZIONE

Variatore di tensione manuale mediante autotra-

sformatore con selettore a 5 posizioni. Assenza di

ronzio elettrico nel motore. Adatto a motori asin-

croni trifase regolabili.

COSTRUZIONE

• Alimentazione400V-3Ph-50/60Hz.

• Corrente nominale max 4 A.

• Tensione di uscita 1(95V)-2(145V)-3(190V)-

4(240V)-5(400V).

• Protezione IP 55.

• Spia di funzionamento

• Contenitore in alluminio pressofuso RAL 7001

(grigio).

• Peso Kg 11.

DESCRIPTION

Manual voltage converter by self-transformer

switchover, 5 step options. Minimum magneto-

acoustic noise in the motor. Suitable for three-

phase asynchronous adjustable motors.

CONSTRUCTION

• Supply 400V-3Ph-50/60Hz.

• Nominal current max 4 A.

• Output voltage 1(95V)-2(145V)-

3(190V)-4(240V)-5(400V).

• Protection IP 55.

• Pilot light

• Housing in die-cast aluminium

RAL 7001 (grey).

• Weight Kg 11.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

Dimensioni in mm / Dimensions in mm

RVT/1

sez.

1

.10

295
