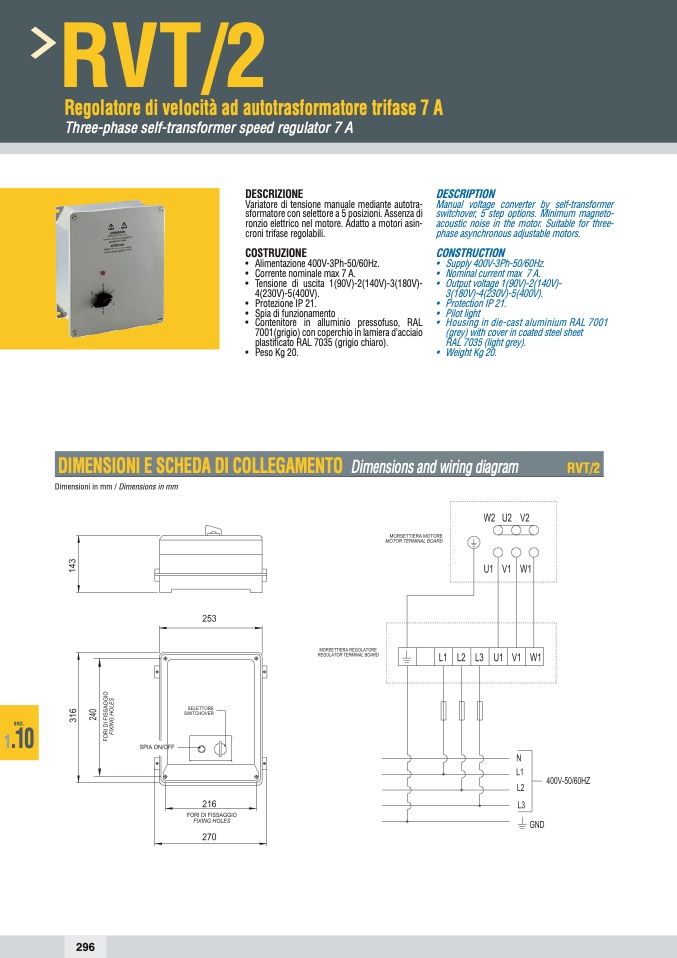

RVT/2

Regolatore di velocità ad autotrasformatore trifase 7 A

Three-phase self-transformer speed regulator 7 A

DESCRIZIONE

Variatore di tensione manuale mediante autotra-

sformatore con selettore a 5 posizioni. Assenza di

ronzio elettrico nel motore. Adatto a motori asin-

croni trifase regolabili.

COSTRUZIONE

• Alimentazione400V-3Ph-50/60Hz.

• Corrente nominale max 7 A.

• Tensione di uscita 1(90V)-2(140V)-3(180V)-

4(230V)-5(400V).

• Protezione IP 21.

• Spia di funzionamento

• Contenitore in alluminio pressofuso, RAL

7001(grigio) con coperchio in lamiera d’acciaio

plastificato RAL 7035 (grigio chiaro).

• Peso Kg 20.

DESCRIPTION

Manual voltage converter by self-transformer

switchover, 5 step options. Minimum magneto-

acoustic noise in the motor. Suitable for three-

phase asynchronous adjustable motors.

CONSTRUCTION

• Supply 400V-3Ph-50/60Hz.

• Nominal current max 7 A.

• Output voltage 1(90V)-2(140V)-

3(180V)-4(230V)-5(400V).

• Protection IP 21.

• Pilot light

• Housing in die-cast aluminium RAL 7001

(grey) with cover in coated steel sheet

RAL 7035 (light grey).

• Weight Kg 20.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

RVT/2

Dimensioni in mm / Dimensions in mm

sez.

1

.10

296
