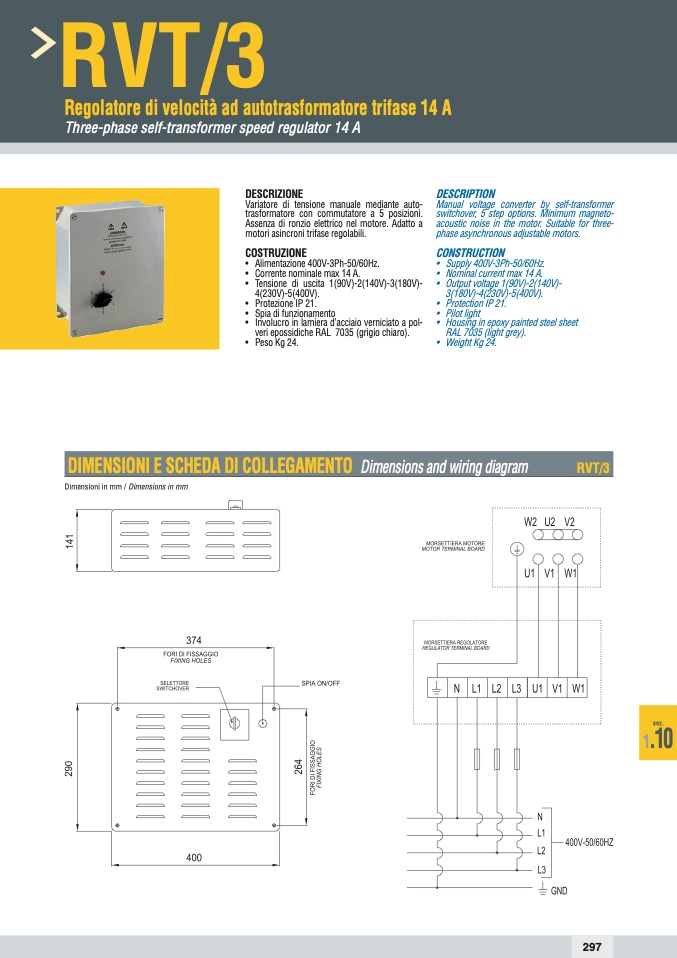

RVT/3

Regolatore di velocità ad autotrasformatore trifase 14 A

Three-phase self-transformer speed regulator 14 A

DESCRIZIONE

Variatore di tensione manuale mediante auto-

trasformatore con commutatore a 5 posizioni.

Assenza di ronzio elettrico nel motore. Adatto a

motori asincroni trifase regolabili.

COSTRUZIONE

• Alimentazione400V-3Ph-50/60Hz.

• Corrente nominale max 14 A.

• Tensione di uscita 1(90V)-2(140V)-3(180V)-

4(230V)-5(400V).

• Protezione IP 21.

• Spia di funzionamento

• Involucro in lamiera d’acciaio verniciato a pol-

veri epossidiche RAL 7035 (grigio chiaro).

• Peso Kg 24.

DESCRIPTION

Manual voltage converter by self-transformer

switchover, 5 step options. Minimum magneto-

acoustic noise in the motor. Suitable for three-

phase asynchronous adjustable motors.

CONSTRUCTION

• Supply 400V-3Ph-50/60Hz.

• Nominal current max 14 A.

• Output voltage 1(90V)-2(140V)-

3(180V)-4(230V)-5(400V).

• Protection IP 21.

• Pilot light

• Housing in epoxy painted steel sheet

RAL 7035 (light grey).

• Weight Kg 24.

DIMENSIONIESCHEDADICOLLEGAMENTO Dimensionsandwiringdiagram

RVT/3

Dimensioni in mm / Dimensions in mm

sez.

1

.10

297
