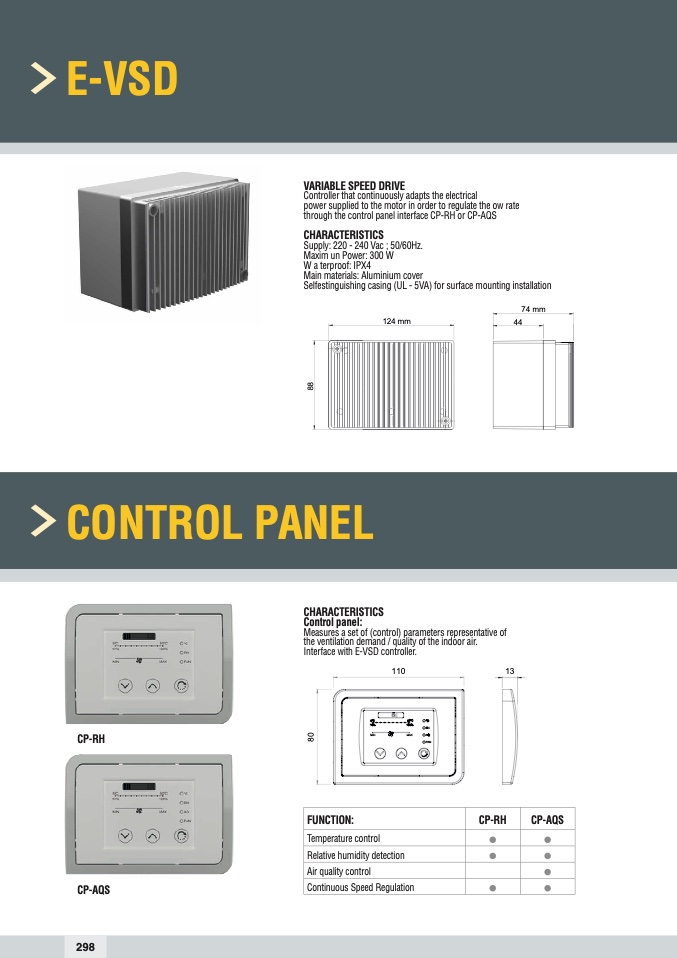

E-VSD

CONTROL PANEL

CP-RH

CP-AQS

CHARACTERISTICS

Control panel:

Measures a set of (control) parameters representative of

the ventilation demand / quality of the indoor air.

Interface with E-VSD controller.

110

13

FUNCTION:

CP-RH

Temperature control

Relative humidity detection

Air quality control

Continuous Speed Regulation

CP-AQS

8

0

8

8

298

VARIABLE SPEED DRIVE

Controller that continuously adapts the electrical

power supplied to the motor in order to regulate the ow rate

through the control panel interface CP-RH or CP-AQS

CHARACTERISTICS

Supply: 220 - 240 Vac ; 50/60Hz.

Maxim un Power: 300 W

W a terproof: IPX4

Main materials: Aluminium cover

Selfestinguishing casing (UL - 5VA) for surface mounting installation

74 mm

124 mm

44
