sez.

1

.1

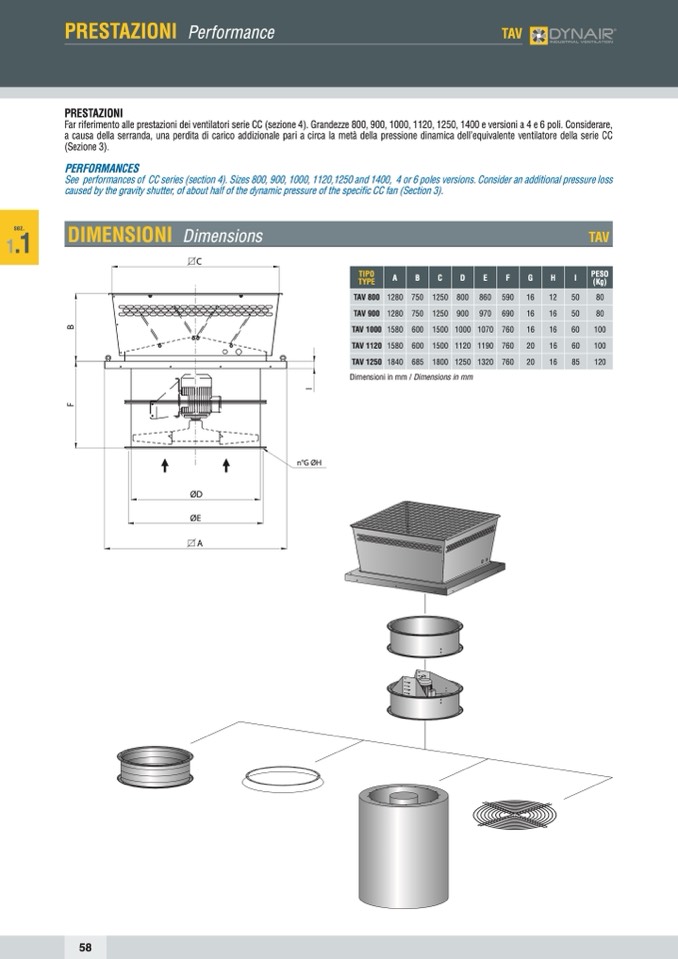

DIMENSIONI Dimensions

C

TAV

I

PESO

(Kg)

50

80

50

80

60

100

60

100

85

120

PRESTAZIONI Performance

TAV

PRESTAZIONI

Far riferimento alle prestazioni dei ventilatori serie CC (sezione 4). Grandezze 800, 900, 1000, 1120, 1250, 1400 e versioni a 4 e 6 poli. Considerare,

a causa della serranda, una perdita di carico addizionale pari a circa la metà della pressione dinamica dell’equivalente ventilatore della serie CC

(Sezione 3).

PERFORMANCES

See performances of CC series (section 4). Sizes 800, 900, 1000, 1120,1250 and 1400, 4 or 6 poles versions. Consider an additional pressure loss

caused by the gravity shutter, of about half of the dynamic pressure of the specific CC fan (Section 3).

F

B

I

58

ØD

ØE

A

n°G ØH

TIPO

A

B

C

D

E

F

G

H

TYPE

TAV 800

TAV 900

TAV 1000

TAV 1120

TAV 1250

1280 750 1250

1280 750 1250

1580 600 1500

1580 600 1500

1840 685 1800

800 860

900 970

1000 1070

1120 1190

1250 1320

590 16

12

690 16

16

760 16

16

760 20

16

760 20

16

Dimensioni in mm / Dimensions in mm
