sez.

1

.2

Dimensioni in mm / Dimensions in mm

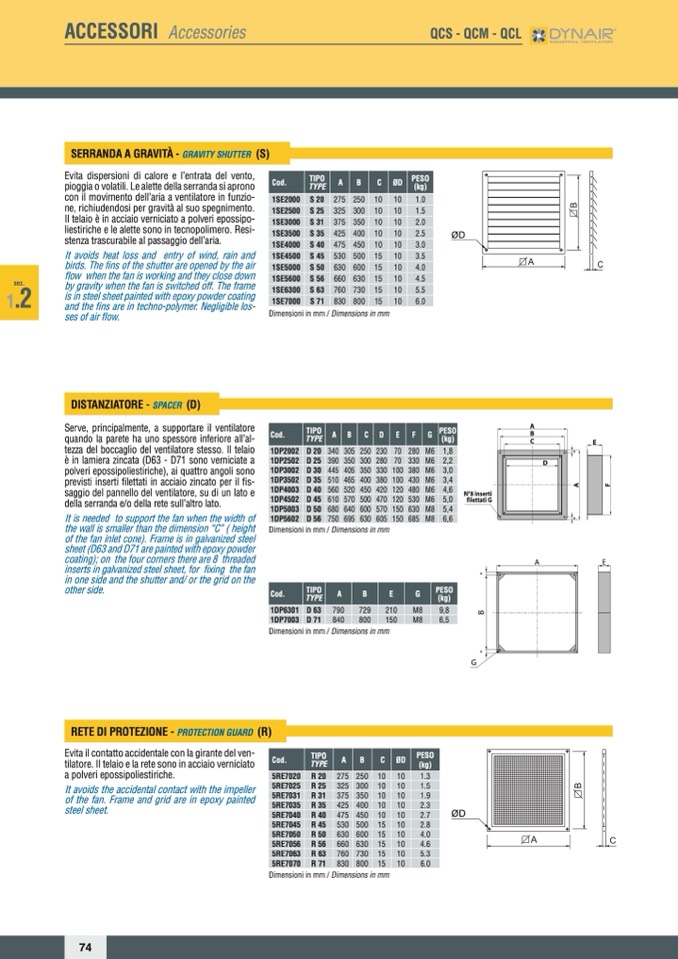

ACCESSORI Accessories

QCS - QCM - QCL

SERRANDAAGRAVITÀ-GRAVITYSHUTTER (S)

Evita dispersioni di calore e l’entrata del vento,

pioggia o volatili. Le alette della serranda si aprono

con il movimento dell’aria a ventilatore in funzio-

ne, richiudendosi per gravità al suo spegnimento.

Il telaio è in acciaio verniciato a polveri epossipo-

liestiriche e le alette sono in tecnopolimero. Resi-

stenza trascurabile al passaggio dell’aria.

It avoids heat loss and entry of wind, rain and

birds. The fins of the shutter are opened by the air

flow when the fan is working and they close down

by gravity when the fan is switched off. The frame

is in steel sheet painted with epoxy powder coating

and the fins are in techno-polymer. Negligible los-

ses of air flow.

DISTANZIATORE-SPACER (D)

Serve, principalmente, a supportare il ventilatore

quando la parete ha uno spessore inferiore all’al-

tezza del boccaglio del ventilatore stesso. Il telaio

è in lamiera zincata (D63 - D71 sono verniciate a

polveri epossipoliestiriche), ai quattro angoli sono

previsti inserti filettati in acciaio zincato per il fis-

saggio del pannello del ventilatore, su di un lato e

della serranda e/o della rete sull’altro lato.

It is needed to support the fan when the width of

the wall is smaller than the dimension “C” ( height

of the fan inlet cone). Frame is in galvanized steel

sheet (D63 and D71 are painted with epoxy powder

coating); on the four corners there are 8 threaded

inserts in galvanized steel sheet, for fixing the fan

in one side and the shutter and/ or the grid on the

other side.

RETEDIPROTEZIONE-PROTECTIONGUARD (R)

Evita il contatto accidentale con la girante del ven-

tilatore. Il telaio e la rete sono in acciaio verniciato

a polveri epossipoliestiriche.

It avoids the accidental contact with the impeller

of the fan. Frame and grid are in epoxy painted

steel sheet.

Cod.

TIPO

1SE2000 S 20 275 250 10 10

1.0

1SE2500 S 25 325 300 10 10

1.5

1SE3000 S 31 375 350 10 10

2.0

1SE3500 S 35 425 400 10 10

2.5

1SE4000 S 40 475 450 10 10

3.0

1SE4500 S 45 530 500 15 10

3.5

1SE5000 S 50 630 600 15 10

4.0

1SE5600 S 56 660 630 15 10

4.5

1SE6300 S 63 760 730 15 10

5.5

1SE7000 S 71 830 800 15 10

6.0

TYPE

A

B

C ØD

PESO

(kg)

Cod.

TIPO

A B

C D E

F G

PESO

A

B

C

D

TYPE

(kg)

E

1DP2002 D 20

1DP2502 D 25

1DP3002 D 30

1DP3502 D 35

1DP4003 D 40

1DP4502 D 45

1DP5003 D 50

1DP5602 D 56

Dimensioni in mm

Cod.

TIP

O

A

B

E

G

PESO

ØD

=

=

=

B

=

A

F

74

TYPE

(kg)

1DP6301 D 63 790

1DP7003 D 71 840

729

210

M8

9,8

6,5

340 305

390 350

445 405

510 465

560 520

610 570

680 640

750 695

/ Dimensions in mm

N°8 inserti

filettati G

800

150

M8

Dimensioni in mm / Dimensions in mm

Cod.

TIPO

A

B

C ØD

PESO

TYPE

(kg)

5RE7020 R 20

5RE7025 R 25

5RE7031 R 31

5RE7035 R 35

5RE7040 R 40

5RE7045 R 45

5RE7050 R 50

5RE7056 R 56

5RE7063 R 63

5RE7070 R 71

275 250 10 10

1.3

325 300 10 10

1.5

375 350 10 10

1.9

425 400 10 10

2.3

475 450 10 10

2.7

530 500 15 10

2.8

630 600 15 10

4.0

660 630 15 10

4.6

760 730 15 10

5.3

830 800 15 10

6.0

ØD

Dimensioni in mm / Dimensions in mm

250 230 70 280 M6 1,8

300 280 70 330 M6 2,2

350 330 100 380 M6 3,0

400 380 100 430 M6 3,4

450 420 120 480 M6 4,6

500 470 120 530 M6 5,0

600 570 150 630 M8 5,4

630 605 150 685 M8 6,6

G

A

E
